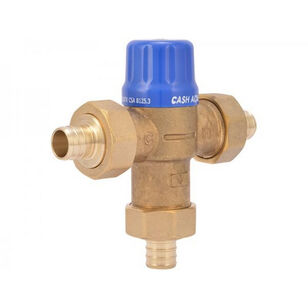

CashAcme™ HG110-D Series 24507 Thermostatic Mixing Valve, 3/4 in Nominal, Barbed, 1 to 20 gpm, 230 psi, 120 to 180 deg F
CashAcme™ HG110-D Series 24507 Thermostatic Mixing Valve, 3/4 in Nominal, Barbed, 1 to 20 gpm, 230 psi, 120 to 180 deg F
CashAcme™ Thermostatic Mixing Valve, HG110-D Series, 3/4 in Nominal, Barbed Connection, 230 psi, 1 to 20 gpm Flow Rate, Water Media, 5-9/32 in Inlet to Outlet Length, Brass Body, Stainless Steel Trim, Brass/Polymer/Stainless Steel Softgoods, 120 to 180 deg F, 5 in H x 1-9/16 in W, Additional Information: 120 deg F Factory Setting Temperature Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$235.20 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSharkBite™
Additional Information120 deg F Factory Setting Temperature Rating
ApplicationCommercial and Domestic Hot Water Distribution
Body MaterialBrass
Connection TypeBarbed
Dimensions5 " H x 1-9/16 " W
Flow Rate1 to 20
IndustryPlumbing
Inlet to Outlet Length5-9/32
MediaWater
Nominal Size3/4
Pressure Rating230
SeriesHG110-D Series
Softgoods MaterialBrass/Polymer/Stainless Steel
Temperature Rating120 to 180
Trim MaterialStainless Steel
WarrantyLimited
Shipping Dimensions (L x W x H)5.63" x 5.2" x 2.17"
Additional Information
ASSE 1017, 1069, 1070|CSA B125.3|IAPMO Listed|NSF/ANSI/CAN 61, 372
Features & Benefits
- Safer hot water from all outlets Adjustable and lockable mechanism
Marketing Information
The HG110-D, a triple-listed thermostatic mixing valve, delivers water at a safe 120 deg F (49 deg C) or lower from all outlets, while allowing the water heater to be set at a germ-killing 140 deg F (60 deg C) or higher which aids in preventing the growth of legionella bacteria in the water heater. The higher tank temperature means that hot water demands can be satisfied longer. Robust, low complexity construction. Every valve is tested for performance prior to shipping. Adjustable and lockable mechanism minimizes unauthorized tampering with valve setting.
CashAcme™ HG110-D Series 24507 Thermostatic Mixing Valve, 3/4 in Nominal, Barbed, 1 to 20 gpm, 230 psi, 120 to 180 deg F
BrandSharkBite™
MFG #24507
Keller #732127
