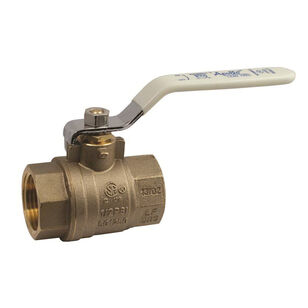

Apollo® 94ALF-A Series 94ALF-105-01A Ball Valve, 1 in, FPT, Brass, 600 psi
Apollo® 94ALF-A Series 94ALF-105-01A Ball Valve, 1 in, FPT, Brass, 600 psi
Apollo® Ball Valve, 94ALF-A Series, 1 in Nominal, FPT Connection, Full Port, 2-Piece, 600 psi, Fire, Gas, Water Media, 0.95 in Orifice, 2.76 in Inlet to Outlet Length, 2.58 in Top to Inlet Center, Lever Handle Operator, Material Standard: ANSI Z21.15, ASTM C36000, ASTM C37700, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Brass/EPDM/PTFE Trim, PTFE Packing, PVC, Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free, Brass, 0 to 400 deg F, 2.76 in L, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$137.12 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
ApplicationFor potable water, heating and cooling applications
Ball MaterialBrass
Body MaterialBrass
ColorBrass
Configuration2-Piece
Connection TypeFPT
Dimensions2.76 " L
Domestic/ImportImport
Handle MaterialPVC, Steel
IndustryPlumbing
Inlet to Outlet Length2.76
Lead-FreeYes
Material StandardANSI Z21.15, ASTM C36000, ASTM C37700
MediaFire, Gas, Water
Nominal Size1
Operator TypeLever Handle
Orifice Size0.95
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialPTFE
Seat MaterialPTFE
Series94ALF-A Series
Softgoods MaterialEPDM/PTFE
Stem MaterialBrass
Temperature Rating0 to 400
Top to Inlet Center2.58
Trim MaterialBrass/EPDM/PTFE
Shipping Dimensions (L x W x H)6" x 1.75" x 3.5"
Additional Information
ASME B16.44, B16.33|cCSAus Certified|cUPC Certified|EU Directive 2015/863 (RoHS 3)|EU Regulation (EC) 1907/2006 (REACH)|FM Approved|MSS-SP-110|IAPMO Approved|NSF/ANSI/CAN 61, 372|UL Listed
Features & Benefits
- Distinctive white lead-free handle grip Blowout-proof stem 100% factory tested Adjustable stem packing nut Multiple agency approvals
Documents
Marketing Information
The Apollo® International™ 94ALF-A lead-free forged brass ball valve combines reliable operation with maximum economy. Featuring multi-agency approvals, the 94ALF-A is ideal for gas, fuels, fire protection and general plumbing and HVAC applications including potable water. Valves are ANSI third party lead-free certified.
Apollo® 94ALF-A Series 94ALF-105-01A Ball Valve, 1 in, FPT, Brass, 600 psi
BrandApollo®
MFG #94ALF10501A
Keller #733396
My Part ##
Last Ordered#
$137.12 / ea
