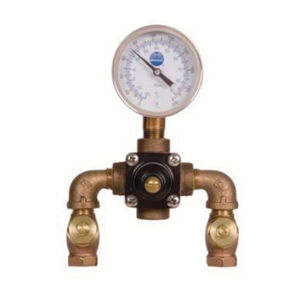

Bradley® Navigator® S19-2000 Emergency Fixture Thermostatic Mixing Valve, 1/2 in, NPT, 7 gpm, 125 psi, Bronze Body
Bradley® Navigator® S19-2000 Emergency Fixture Thermostatic Mixing Valve, 1/2 in, NPT, 7 gpm, 125 psi, Bronze Body
Bradley® Navigator® Emergency Fixture Thermostatic Mixing Valve, 1/2 in Connection, NPT Connection, 7 gpm Flow Rate, 125 psi, 65 to 95 deg F, Bronze Body, Finish: Chrome-Plated, 6-1/4 in Diameter, 8-3/8 in Length, 5-1/2 in Width, Additional Information: 5 in Inlet to Outlet Length, 8-3/8 in Top to Inlet Center, Domestic, Water Media
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,599.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBradley®
Additional Information5 " Inlet to Outlet Length, 8-3/8 " Top to Inlet Center, Domestic, Water Media
Body MaterialBronze
Connection Size1/2
Connection TypeNPT
Diameter6-1/4
FinishChrome-Plated
Flow Rate7
IndustryPlumbing
Length8-3/8
Pressure Rating125
Temperature Rating65 to 95
Width5-1/2
Shipping Dimensions (L x W x H)9.5" x 5.5" x 7"
Additional Information
ASSE 1071|cUPC Certified
Features & Benefits
- Single valve design Reliable liquid filled thermostat Factory pre-set at 85 deg F Universal mounting capability Positive shut-off of hot supply when cold supply is lost Built-in cold-water bypass assures cold flow Easily installed and serviced Dial thermometer
Documents
Marketing Information
The 15 min rule - the current ANSI standard calls for emergency eyewash and drench showers to deliver tepid water for 15 min. This assures that a user won't be subjected to very cold-water and possibly hypothermia or very hot scalding water and possibly skin burns. Therefore, a thermostatic mixing valve is needed to mix incoming hot and cold-water to a tepid temperature. The Navigator® EFX is designed for this very purpose.
Bradley® Navigator® S19-2000 Emergency Fixture Thermostatic Mixing Valve, 1/2 in, NPT, 7 gpm, 125 psi, Bronze Body
BrandBradley®
MFG #S19-2000
Keller #734325
