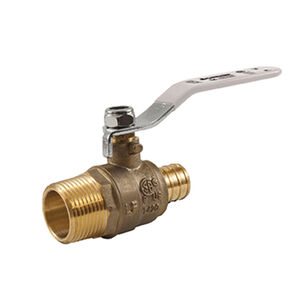

Jomar Valve® T-412G Series 103-534MPG Ball Valve, 3/4 in, MIPT x PEX, Brass, 400 psi
Jomar Valve® T-412G Series 103-534MPG Ball Valve, 3/4 in, MIPT x PEX, Brass, 400 psi
Jomar Valve® Ball Valve, T-412G Series, 3/4 in Nominal, MIPT x PEX Connection, 2-Piece, 400 psi, Gas, Oil, Water Media, 0.53 in Orifice, 2.58 in Inlet to Outlet Length, 1.65 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASME/ANSI B16.18, ASME A112.4.14, ASTM F1807, Brass Body, PTFE Seat, 304 Stainless Steel Stem, PTFE Trim, PTFE Packing, Steel Handle, 304 Stainless Steel Ball, Buna-N/PTFE Softgoods, Lead-Free, 180 deg F, 2.58 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$35.20 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandJomar Valve®
Ball Material304 Stainless Steel
Body MaterialBrass
Configuration2-Piece
Connection TypeMIPT x PEX
Dimensions2.58 " L
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.58
Lead-FreeYes
Material StandardASME/ANSI B16.18, ASME A112.4.14, ASTM F1807
MediaGas, Oil, Water
Nominal Size3/4
Operator TypeLever Handle
Orifice Size0.53
Packing MaterialPTFE
Pressure Rating400
Seat MaterialPTFE
SeriesT-412G Series
Softgoods MaterialBuna-N/PTFE
Stem Material304 Stainless Steel
Temperature Rating180
Top to Inlet Center1.65
Trim MaterialPTFE
Additional Information
ANSI Z1157-2014|cUPC Certified|cCSAus Certified|IAPMO Approved|NSF 61, 372|RoHS Compliant
Features & Benefits
- Dezincification-resistant brass alloy Gland follower and single O-ring stem design Blowout-proof stem 100% factory leak tested Wetted surface contain <0.25% lead content
Documents
Jomar Valve® T-412G Series 103-534MPG Ball Valve, 3/4 in, MIPT x PEX, Brass, 400 psi
BrandJomar Valve®
MFG #103-534MPG
Keller #735896
