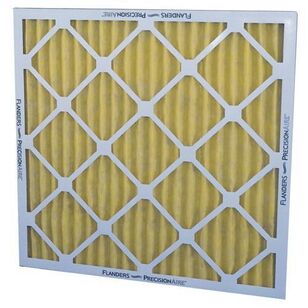

FLANDERS PRE-PLEAT 16X20X4 MERV 11 STD. CAPACITY 85655.041620M11
FLANDERS PRE-PLEAT 16X20X4 MERV 11 STD. CAPACITY 85655.041620M11
Flanders® Pleated Panel Filter, 85655 Series, Progressive Density Bi-Component Fiber Media, 16 in Width, 20 in Height, 4 in Depth, 11 MERV, 60 to 65 % Filter Efficiency, 13.7 sq-ft Media Area, 9 Pleats per Linear Feet, 300/500 fpm Rated Velocity, 0.12 in-WG at 300 fpm and 0.25 in-WG at 500 fpm Initial Resistance, 1 in-WG Final Resistance, 667 cfm, 1110 cfm Air Flow Capacity, 15-1/2 x 19-1/2 x 3-3/4 in Actual
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$22.53 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandFlanders®
Actual Size15-1/2 x 19-1/2 x 3-3/4
Air Flow Capacity667 cfm, 1110 cfm
Depth4
Filter Efficiency60 to 65
Final Resistance1 "-WG
Height20
IndustryHVAC
Initial Resistance0.12 "-WG at 300 fpm and 0.25 "-WG at 500 fpm
Media Area13.7
Media MaterialProgressive Density Bi-Component Fiber
MERV11
Pleats per Linear Feet9
Rated Velocity300/500
Series85655 Series
Width16
Features & Benefits
- Enhanced fibers Gradient media structure High-efficiency at low pressure drop Diamond shaped expanded metal media support Moisture-resistant clay-coated frame V-pleat design Upgrade existing rooftop and secular systems by up to 300% in efficiency to remove incoming contaminants not previously removed Upgrade existing pre-filter plenums with the 62RM11 pleat to increase the life of your more expensive final filters downstream Building owners and occupants will be significantly better protected from a bio-aerosol hazard than with conventional filters
Marketing Information
Pre pleat 62RM11 pleated panel filter enables a significant upgrade in collection efficiency over existing MERV 8 3 8 products at the same resistance levels. A 25 to 30% average efficiency filter can be upgraded to 60 to 65% efficiency at roughly the same resistance levels. Our next-generation ultrahigh-performance bi-component synthetic media contains mechanically engineered tri-lobal fibers with in homogenous domains of positive and negative electret charges within the bi-component fibers to equal an ultra-high-performance product.
FLANDERS PRE-PLEAT 16X20X4 MERV 11 STD. CAPACITY 85655.041620M11
BrandFlanders®
MFG #85655.041620M11
Keller #736373
My Part ##
Last Ordered#
$22.53 / ea
