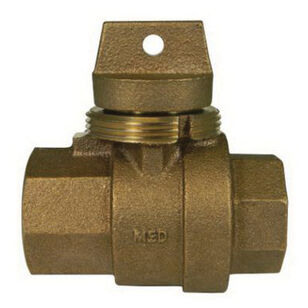

Mc.Donald® 76105 Series 5129-191 Ball Style Curb Stop, 3/4 in Nominal, FNPT, 300 psig, Brass Body
Mc.Donald® 76105 Series 5129-191 Ball Style Curb Stop, 3/4 in Nominal, FNPT, 300 psig, Brass Body
Mc.Donald® Ball Style Curb Stop, 76105 Series, 3/4 in Nominal, FNPT Connection, 300 psig, EPDM Trim, EPDM Softgoods, Brass Body, Lead-Free, 2.43 in Top to Inlet Center, 2.84 in Inlet to Outlet Length, Domestic/Import: Domestic, Additional Information: ASTM B584, C89833 Material Standard, 3/4 in Opening, EPDM Seal, Brass Ball, 2.84 in L, Water Media
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$143.26 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandMc.Donald®
Additional InformationASTM B584, C89833 Material Standard, 3/4 " Opening, EPDM Seal, Brass Ball, 2.84 " L, Water Media
Body MaterialBrass
Connection TypeFNPT
Domestic/ImportDomestic
Inlet to Outlet Length2.84
Nominal Size3/4
Pressure Rating300
Series76105 Series
Softgoods MaterialEPDM
Top to Inlet Center2.43
Trim MaterialEPDM
Additional Information
ANSI 61, 372|AWWA C800|NSF Certified
Features & Benefits
- PTFE-coated brass ball Valve rated for 300 PSIG water pressure, end connections not to exceed rated pipe pressures Blowout-proof EPDM port seals End piece joint sealed with an EPDM O-ring and thread locker
Marketing Information
A.Y. McDonald Mfg. Co ball valve curb stops maintain their low turning torques and bubble-tight 300 psig water pressure rating due to the PTFE-coated brass ball that is supported by two blow-out-proof EPDM seals. The end piece joint is sealed with an EPDM O-ring and thread locker. A.Y. McDonald ball valve curb stops offer positive shut-off from either direction and are available with a wide variety of end connections or Minneapolis Curb Box threads. A brass 2 in square operating head that is easily pinned to existing curb stops is available separately.
Mc.Donald® 76105 Series 5129-191 Ball Style Curb Stop, 3/4 in Nominal, FNPT, 300 psig, Brass Body
BrandMc.Donald®
MFG #5129-191
Keller #737467
My Part ##
Last Ordered#
$143.26 / ea
