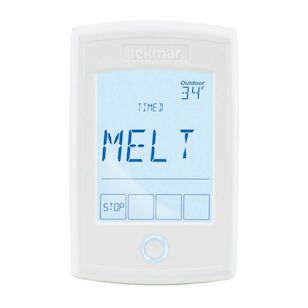

Snow Melting Control, tekmarNet Electric or Hydronic Boiler, Mixing
Snow Melting Control, tekmarNet Electric or Hydronic Boiler, Mixing
Snow Melting Control, tekmarNet Electric or Hydronic Boiler, Mixing
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,440.00 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandTekmar®
Ambient Temperature Range-4 to 122 degree F
Boiler Mix Modulating Output0 - 10 VDC, 500 Ohm Minimum Load Impedance, 4 - 20 mA 1 kOhm Maximum Load Impedance
ClassClass 2
Control TypeMicroprocessor
Depth0.94"
Enclosure MaterialPolyvinyl Chloride
FinishWhite
Height5"
IncludesOutdoor Sensor 070, Universal Sensor 082
Indoor OutdoorOutdoor
IndustryHVAC
NEMA RatingNEMA 1
Power Rating16 VA Standby, 100 VA Fully Loaded
Power Supply24 VAC plus /-10 percent , 60 Hz
Prop 65 WarningYes
Relative Humidity<90 percent Non-Condensing
Relay24 VAC, 2 A, 3.6 A Combined
SensorNTC Thermistor, 10 kOhm at 77 degree F (25 degree C plus /- 0.2 degree C) Beta = 3892
Width3.25"
Features & Benefits
- EconoMelt, manual override
- Snow melt zone tracking, scenes
- Manual start with timer, programmable schedule
- Snow melt zoning with priority, tandem snow/ice detection
- Away key, exercising
- Slab protection, storm
- Cold weather cut-out, Idling
- Automatic snow/ice detection, supports both in-slab and retrofit aerial sensors
- tekmarNet communication compatible, warm weather shut down
Documents
Snow Melting Control, tekmarNet Electric or Hydronic Boiler, Mixing
BrandTekmar®
MFG #654
Keller #739302
