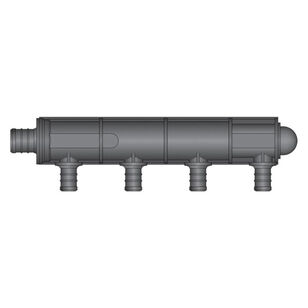

HeatLink® 13204 Multi-Port Tee, 1 -Inlet, 4 -Outlet, 3/4 in F2159 PEX Inlet, 1/2 in PEX Outlet, Polyphenylsulfone
HeatLink® 13204 Multi-Port Tee, 1 -Inlet, 4 -Outlet, 3/4 in F2159 PEX Inlet, 1/2 in PEX Outlet, Polyphenylsulfone
HeatLink® Multi-Port Tee, 1 Inlets, 4 Outlets, 3/4 in Inlet Connection, F2159 PEX Inlet Connection, 1/2 in Outlet Connection, PEX Outlet Connection, 100 psi, 180 deg F Operating Temperature, Polyphenylsulfone, Additional Information: 1.26 in OD, One End Closed Outlet
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$41.21 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHeatLink®
Additional Information1.26 " OD, One End Closed Outlet
IndustryPlumbing
Inlet Connection Size3/4
Inlet Connection TypeF2159 PEX
MaterialPolyphenylsulfone
Number of Inlets1
Number Of Outlets4
Operating Temperature180
Outlet Connection Size1/2
Outlet Connection TypePEX
Pressure Rating100
WarrantyLimited
Additional Information
ASTM E84/F877/F2159|cNSFus-pw Certified|cQAIus P371|CSA B137.5|ICC ES PMG 1087|IMC Certified|IPC Listed|IRC Listed|NPC Listed|NSF/ANSI 14/61/372|NSPC Listed|ULC S102.2|UMC Certified|UPC Certified
Features & Benefits
- ASTM F2159 compliant PEX insert fitting High performance polymer Outstanding resistance to hot chlorinated water High resistance to mineral acids, alkali and salt solutions Stainless steel press sleeves sold separately
Marketing Information
The use of PEX tubing in a potable hot water plumbing system with an operating temperature above 140 deg F or system pressure above 80 psig or highly aggressive water quality or any combination there of can significantly reduce the service life of the tubing. HeatLink® requires following the guidelines described in plastics pipe institute TN-53, guide to chlorine resistance ratings of PEX pipes and tubing for potable water applications and HeatLink® info 37, domestic hot water recirculation systems.
HeatLink® 13204 Multi-Port Tee, 1 -Inlet, 4 -Outlet, 3/4 in F2159 PEX Inlet, 1/2 in PEX Outlet, Polyphenylsulfone
BrandHeatLink®
MFG #13204
Keller #739460
