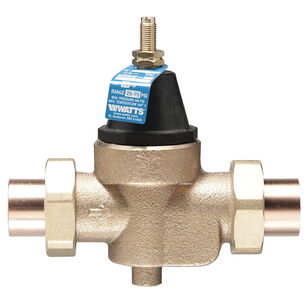

WATTS® LFN45BM1-DU-S 1 Water Pressure Reducing Valve, 1 in Nominal, Solder, 400 psi, 33 to 180 deg F
WATTS® LFN45BM1-DU-S 1 Water Pressure Reducing Valve, 1 in Nominal, Solder, 400 psi, 33 to 180 deg F
WATTS® Water Pressure Reducing Valve, LFN45B Series, 1 in Nominal, Solder Connection, 400 psi, Water Media, 4-9/16 in Top to Inlet Center, Copper Silicone Body, Thermoplastic Seat, Elastomer Disc, Lead-Free, 33 to 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$561.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicone
Connection TypeSolder
Disc MaterialElastomer
MediaWater
Nominal Size1
Pressure Rating400
Seat MaterialThermoplastic
SeriesLFN45B Series
Temperature Rating33 to 180
Top to Inlet Center4-9/16
Additional Information
ANSI A112.26.2|ASSE 1003|CSA B356|IAPMO Listed|Military Standard MIL-V-18146B Type I|Southern Standard Plumbing Code Certified
Features & Benefits
- Integral stainless steel strainer removable for cleaning Solder union inlet and outlet Thermoplastic seat and cage Sealed spring cage for accessible outdoor or pit installations
Marketing Information
This 1 in lead-free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead-free cast copper silicon alloy body construction, double union solder inlet and outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 deg F (0.5 to 82 deg C). Suitable for up to 400 psi (27.6 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
WATTS® LFN45BM1-DU-S 1 Water Pressure Reducing Valve, 1 in Nominal, Solder, 400 psi, 33 to 180 deg F
BrandWATTS®
MFG #0009493
Keller #743711
My Part ##
Last Ordered#
$561.00 / ea
