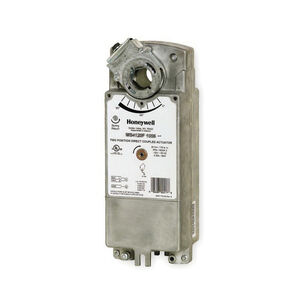

Honeywell MS4120F1006/U Damper Actuator, 120 VAC, 15 sec Nominal at 60 Hz Driving, 15 sec Spring Return Timing, Aluminum
Honeywell MS4120F1006/U Damper Actuator, 120 VAC, 15 sec Nominal at 60 Hz Driving, 15 sec Spring Return Timing, Aluminum
Honeywell Damper Actuator, 120 VAC, 60 Hz, (2) Integral 3/8 in Flexible Conduit Electrical Connection, 15 sec Nominal at 60 Hz Driving, 15 sec Spring Return Timing, Aluminum, 175 in-lb Torque, 70 dBA Driving, 20 dBA Holding, -40 to 130 deg F Ambient, NEMA 2, IP54 Enclosure, 5 - 95% RH Non-Condensing Humidity, 3.94 in W x 10.67 in H x 2.95 in D, 2-Position SPST Control Signal, Direct Coupled Mounting, 0.35 A, 35 W Driving, 0.15 A, 10 W Holding Power Consumption, 3/8 - 1-3/8 in Round or 3/8 - 11/16 in Square Shaft, 95 +/-3 deg Stroke
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$892.89Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
ApplicationFor fire and smoke control
Control Signal2-Position SPST
Dimensions3.94 " W x 10.67 " H x 2.95 " D
Electrical Connection(2) Integral 3/8 " Flexible Conduit
Enclosure TypeNEMA 2, IP54
Frequency Rating60
Humidity Rating5 - 95% RH Non-Condensing
IncludesSelf-Centering Shaft Adapter, 3 mm Crank
MaterialAluminum
Mounting TypeDirect Coupled
Noise Level70 dBA Driving, 20 dBA Holding
Power Consumption0.35 A, 35 W Driving, 0.15 A, 10 W Holding
Shaft Size3/8 - 1-3/8 " Round or 3/8 - 11/16 " Square
Stroke95 +/-3 deg
Temperature Rating-40 to 130 deg F Ambient
Timing Range15 sec Nominal at 60 Hz Driving, 15 sec Spring Return
Torque Rating175
Voltage Rating120
Additional Information
cUL Listed, C22.2 Number 24-93 Certified, UL 873 Listed, cUL Listed, N314 C-Tick Approval, 89/336/ECC, 73/23/EEC CE Certified
Features & Benefits
- Reversible-mounting facilitates use in either clockwise (CW) or counter clockwise (CCW) spring rotation Integral spring return ensures level of return torque No special cycling required during long-term holding No audible noise during holding Patent pending design eliminates need for limit switches to reduce power consumption Models available for 24, 120 and 230 VAC Actuator holds rated torque at reduced power level Housing design allows flush-mounting to damper Designed to operate reliably in smoke control systems requiring UL 555S ratings upto 350 deg F Models available with SPST position indicating switches (7 deg, 85 deg stroke) Aluminum hub, (2) set screws shaft adapter type
Marketing Information
The Honeywell fast-acting, two-position actuators are line V (120 V), 30 lb-in, spring return direct coupled actuators (DCA) for fire and smoke dampers (on/off control). The actuator accepts an on/off signal from a SPST controller. Reversible mounting allows actuator to be used for either clockwise (CW) or counterclockwise (CCW) spring rotation.
Honeywell MS4120F1006/U Damper Actuator, 120 VAC, 15 sec Nominal at 60 Hz Driving, 15 sec Spring Return Timing, Aluminum
BrandHoneywell
MFG #MS4120F1006/U
Keller #744351
