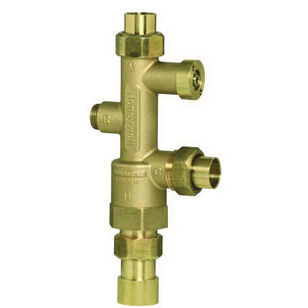

Honeywell AMX101 Series AMX101-US-1LF/U Thermostatic Mixing Valve, 3/4 in, Sweat, 0.5 to 14 gpm, Brass, Teflon-Coated
Honeywell AMX101 Series AMX101-US-1LF/U Thermostatic Mixing Valve, 3/4 in, Sweat, 0.5 to 14 gpm, Brass, Teflon-Coated
Honeywell Thermostatic Mixing Valve, AMX101 Series, 3/4 in Nominal, Sweat Connection, 0.5 to 14 gpm Flow Rate, 4 Cv Flow Coefficient (Cv), Brass, Finish: Teflon-Coated, Lead-Free, 90 to 130 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$614.10Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
Brandresideo
Connection TypeSweat
FinishTeflon-Coated
Flow Coefficient (Cv)4
Flow Rate0.5 to 14
IndustryHVAC
Lead-FreeYes
MaterialBrass
Nominal Size3/4
SeriesAMX101 Series
Temperature Rating90 to 130
Additional Information
ASSE 1017|CSA Certified|IAPMO Listed
Features & Benefits
- Designed to be directly installed on water heater hot outlet port Offers constant water temperature under changing operating conditions Temperature is adjustable using 3/16 Allen wrench and if cold water supply is interrupted, flow reduction occurs in seconds Heat trapping not required and recirculation portion option allows for fast response Dramatically reduces installation time and cuts number of parts in half Easy recirculation integrated port allows for optional recirculation connection Direct connect to water heater NPT bottom connection attaches easily Teflon coating increases product life and reduces callbacks Free thermostrip included to make temperature setting easy for one person to handle Less than 0.25% low-lead content by weighted average Minimum temperature difference between hot and mix should be 10 deg F Includes check valves on hot and cold port Includes 3/4 in NPT bottom connection Honeywell AMX series direct connect reduces water heater installation time as the cold and hot port position eliminates the need for typical elbows and tees Designed for safety to prevent scalding, it also increases user comfort
Honeywell AMX101 Series AMX101-US-1LF/U Thermostatic Mixing Valve, 3/4 in, Sweat, 0.5 to 14 gpm, Brass, Teflon-Coated
Brandresideo
MFG #AMX101-US-1LF/U
Keller #745040
