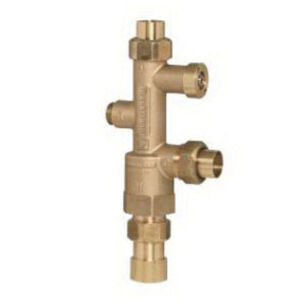

Honeywell Home AMX Series AMX102-UT-1LF Thermostatic Mixing Valve, 1 in Nominal, NPT, 0.5 gpm, 150 psi, 90 to 130 deg F
Honeywell Home AMX Series AMX102-UT-1LF Thermostatic Mixing Valve, 1 in Nominal, NPT, 0.5 gpm, 150 psi, 90 to 130 deg F
Honeywell Home Thermostatic Mixing Valve, AMX Series, 1 in Nominal, NPT Connection, 150 psi, 0.5 gpm Flow Rate, Water Media, Brass Body, EPDM Seal, EPDM Packing, EPDM Softgoods, 90 to 130 deg F, 4-1/2 in H, Domestic/Import: Import, Additional Information: 4 Cv Flow Coefficient
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$765.35 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
Brandresideo
Additional Information4 Cv Flow Coefficient
ApplicationFor domestic water, nursing homes, public facilities, automatic faucets, industrial and photo processing applications
Body MaterialBrass
Connection TypeNPT
Dimensions4-1/2 " H
Domestic/ImportImport
Flow Rate0.5
Includes(2) 1 in Union Threaded Fittings
MediaWater
Nominal Size1
Packing MaterialEPDM
Pressure Rating150
Seal MaterialEPDM
SeriesAMX Series
Softgoods MaterialEPDM
Temperature Rating90 to 130
Warranty1 Year Limited
Additional Information
ASSE Specified|CSA Certified|IAPMO Approved|NSF/ANSI Certified
Features & Benefits
- Designed to be directly installed on water heater hot outlet port Offers constant water temperature under changing operating conditions Temperature is adjustable using 3/16 Allen Wrench and if cold-water supply is interrupted, flow reduction occurs in seconds Features brass/stainless construction and PTFE-coated of wear surfaces Heat trapping not required and recirculation portion option allows for fast response Lead-free products have products numbers end in LF Low-lead content <0.25% by weighted average
Marketing Information
AMX Series DirectConnect™ reduces water heater installation time as the cold and hot port position eliminates the need for typical elbows and tees. Designed for safety to prevent scalding, it also increases user comfort.
Honeywell Home AMX Series AMX102-UT-1LF Thermostatic Mixing Valve, 1 in Nominal, NPT, 0.5 gpm, 150 psi, 90 to 130 deg F
Brandresideo
MFG #AMX102-UT-1LF/U
Keller #745043
