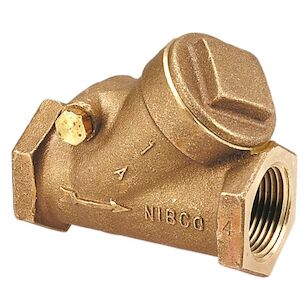

T453B 1/4 THD 200No. CHECK BRZ SEAT
T453B 1/4 THD 200No. CHECK BRZ SEAT
T453B 1/4 THD 200No. CHECK BRZ SEAT
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$350.90Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
All Basic MaterialBronze
All Type Of ItemValve
End ConnectionThreaded
Height1.47"
IndustryPlumbing
Length2.32"
Made in USATrue
MadetoorderTrue
MaterialBronze
Mpg20
Mto Or Ato MaterialsMTO
Nominal Pipe Size1/4
Nominal Size 11/4".
Prop 65 WarningYes
Seat Seal MaterialBronze
Size Dimensions1/4".
Turns OperationsNon-Manual
Type Of Check ValveSwing
Type Of ValveCheck Valve
Valve End Connection TypeT -- Female NPT Thread (FIPT)
Valve Multi Turn Bonnet DesignScrew-in Bonnet
Valve Pressure Rating Cwp400 PSI/27.6 Bar CWP
Valve Pressure Rating Swp200 PSI/13.8 Bar SWP
Weight0.53 lbs.
Width2.14"
Shipping Dimensions (L x W x H)13.31" x 4.38" x 3.13"
Features & Benefits
- 200 psi/13.8 bar saturated steam to 391 degreeF/201 degreeC
- 400 psi/27.6 bar non-shock cold working pressure
- Y-pattern
- Renewable bronze disc
- Regrindable seat
- Class 200 threaded end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-80
Documents
Marketing Information
The NIBCO bronze check valve features threaded end connections for ease of installation. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO check valves are backed by the NIBCO 5-year 125 Percent limited warranty.
