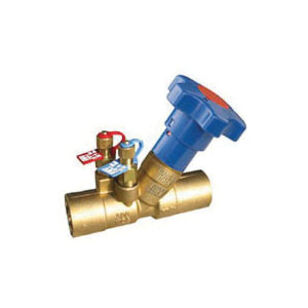

RWV® 9519 Series 9519-1-1/2 Balancing Valve, 1-1/2 in Nominal, Solder, 12.84 to 29.80 gpm, 300 psi, 15 to 260 deg F
RWV® 9519 Series 9519-1-1/2 Balancing Valve, 1-1/2 in Nominal, Solder, 12.84 to 29.80 gpm, 300 psi, 15 to 260 deg F
RWV® Balancing Valve, 9519 Series, 1-1/2 in Nominal, Solder Connection, Full Port, 300 psi, 12.84 to 29.80 gpm Flow Rate, Water Media, Manual Actuator, 4.94 in Top to Inlet Center, 1-Handle Handles, DZR Brass Body, Brass Stem, PTFE Seal, DZR Brass Disc, Brass/DZR Brass Trim, ABS Handle, EPDM/PTFE/Steel Softgoods, Hand Wheel Operator, 22.65 Cv Flow Coefficient (Cv), 15 to 260 deg F, Material Standard: ASTM C35330, Contains Lead, 5.9 in L x 4.94 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$260.90 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRWV®
Actuator TypeManual
ApplicationFor hydronic controls applications
Body MaterialDZR Brass
Connection TypeSolder
Dimensions5.9 " L x 4.94 " H
Disc MaterialDZR Brass
Flow Coefficient (Cv)22.65
Flow Rate12.84 to 29.80
Handle MaterialABS
IndustryPlumbing
Material StandardASTM C35330
MediaWater
Nominal Size1-1/2
Number of Handles1-Handle
Operator TypeHand Wheel
Port TypeFull
Pressure Rating300
Seal MaterialPTFE
Series9519 Series
Softgoods MaterialEPDM/PTFE/Steel
Stem MaterialBrass
Temperature Rating15 to 260
Top to Inlet Center4.94
Trim MaterialBrass/DZR Brass
Additional Information
BAA Compliant
Features & Benefits
- DZR brass fixed orifice double regulating globe valve Venturi insert Positive shut-off with memory stop Design according to BS7350 Tolerance on nominal Cvs +/-3% (test according to BS7350) Multi-turn adjustment (four full turns minimum)
