ASSE 1017|CSA Certified

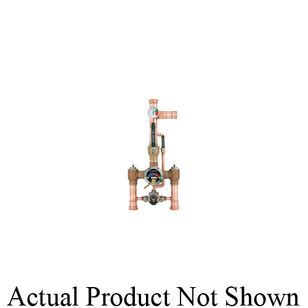

• Next generation high-low system Large type-TM thermostatic water mixing valve, adjustable high-temperature limit stop, inlet check stops, wall support, outlet ball valve Small type-TM thermostatic water mixing valve, adjustable high-temperature limit stop, integral check stops, outlet ball valve Color-coded dial thermometer (0 to 140 deg F, -10 to 60 deg C) Inlet manifold piping Locking temperature regulator Factory assembled and tested

Provide factory assembled and tested large type-TM thermostatic water mixing valve, small type-TM valve, DURA-trol® solid bi-metal thermostat (directly linked to valve porting to control the intake of hot and cold-water and compensate for supply temperature or pressure fluctuations) with 10 years limited warranty, color-coded dials (HOT-COLD with directional indicators), locking temperature regulator handles, adjustable limit stops set for 120 deg F (49 deg C), integral hot and cold supply check stops, outlet ball valve shut-off and color-coded dial thermometer, inlet piping manifold, factory pre-assembled and tested, rough bronze finish System shall provide full time standby service should one mixing valve require maintenance and shall be piped according to LEONARD® required piping method.
