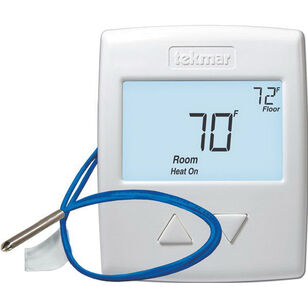

Tekmar® 519 Radiant Thermostat With Floor Sensor, 10 to 30 V, 1 Heat
Tekmar® 519 Radiant Thermostat With Floor Sensor, 10 to 30 V, 1 Heat
Tekmar® Radiant Thermostat With Floor Sensor, 10 to 30 V, 50/60 Hz Frequency, 1 Heat Stages, Relay Switch, 10 kOhm at 77 deg F NTC Thermistor Sensing Element, 32 to 122 deg F Ambient, Less Than or Equal to 90% RH Non-Condensing Humidity, Hardwired Power Source, Vertical Mounting, Dimensions: 3-11/16 in H x 3 in W x 15/16 in D, PVC, White
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$228.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandTekmar®
ApplicationFor 1-stage hydronic heating systems
ColorWhite
Dimensions3-11/16 " H x 3 " W x 15/16 " D
Frequency Rating50/60
Humidity RatingLess Than or Equal to 90% RH Non-Condensing
Includes079 Slab Sensor
MaterialPVC
Mounting TypeVertical
Power SourceHardwired
Sensing Element10 kOhm at 77 deg F NTC Thermistor
Stages1 Heat
Switch TypeRelay
Temperature Rating32 to 122 deg F Ambient
Voltage Rating10 to 30
Warranty3 Year Limited
Additional Information
Meets Class B: ICES and FCC Part 15
Features & Benefits
- The radiant thermostat 519 accurately controls the room and/or floor temperature for a hydronic heating zone using pulse width modulation (PWM) technology Simple up and down buttons and a display with large type make this thermostat easy to read and use This easy to install thermostat is a direct replacement for the Tekmar thermostat 509 Auto heating cycle, backlight Freeze protection, radiant floor heating, outdoor and floor temperature display Micro-processor control 1.8 VA standby, 56 VA maximum fully loaded, class 2 at 10 - 30 VAC/VDC 2 A at 30 VAC/VDC, class 2 circuits relay Indoor use only ambient conditions NEMA Type 1 enclosure A slab sensor 079 is included to measure floor temperature to protect the floor from overheating and enhance comfort
Tekmar® 519 Radiant Thermostat With Floor Sensor, 10 to 30 V, 1 Heat
BrandTekmar®
MFG #519
Keller #752349
My Part ##
Last Ordered#
$228.00 / ea
