ASSE 1015|AWWA C510|BAA Compliant|cCSAus Certified|cULus Listed|NSF/ANSI CAN 61|UPC Listed|USC FCCCHR

• Lead-free cast copper silicon alloy body construction Chloramine-resistant elastomers Top-mounted screwdriver slotted ball valve test cocks Reversible seat disc rubber, extends the check valve life

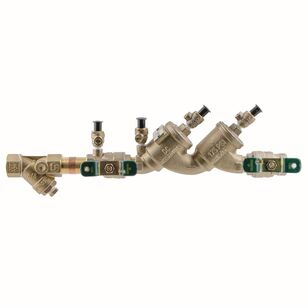

This 3/4 in lead-free double check valve backflow preventer assembly is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to back siphonage and or back pressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazard applications and from other contaminants found at the service line entrance. This compact design with separate access top entry for easy maintenance is approved with the arrow on the valve pointing in the direction of flow for horizontal and vertical installations. This assembly consists of a lead-free cast copper silicon alloy body, quarter-turn ball valves with tee handles, NPT end connections, lead-free bronze strainer, screw driver slotted test cocks, two replaceable positive seating check valves and reversible rubber seat discs.
