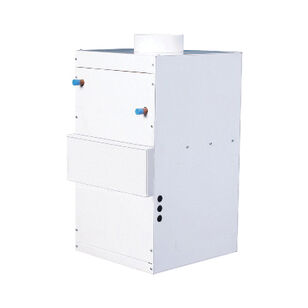

Hi-Velocity System™ Achiever® UPQL-JAZ Series 41011200050 Multi-Positional Air Handler With VFD Motor, 2 ton, 500 cfm
Hi-Velocity System™ Achiever® UPQL-JAZ Series 41011200050 Multi-Positional Air Handler With VFD Motor, 2 ton, 500 cfm
Hi-Velocity System™ Multi-Positional Air Handler, HE-Z Series, HE-Z-50 Model, 2 ton Nominal Capacity, 115/230 V Voltage Rating, 4 A Amperage Rating, 310 W Wattage, 3/4 hp Rating, 50/60 Hz Frequency Rating, 500 cfm Rating, R-410A Refrigerant Type, 5 gpm Flow Rate, 6 Row, 10 FPI Coil Rating, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, 14-1/2 in L x 18-1/4 in W x 32-5/16 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,803.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHi-Velocity System™
AHRI CertifiedYes
Amperage Rating4
CFM Rating500
Coil Rating6 Row, 10 FPI
Dimensions14-1/2 " L x 18-1/4 " W x 32-5/16 " H
Flow Rate5
Frequency Rating50/60
HP Rating3/4
IndustryHVAC
Liquid Line Size3/8
ModelHE-Z-50
Nominal Capacity2
Refrigerant TypeR-410A
SeriesHE-Z Series
Suction Line Size7/8
Voltage Rating115/230
Warranty5 Year
Wattage310
Additional Information
AHRI Certified|ASHARE Certified|CE Marked|CSA Certified|DOE|UL Listed
Features & Benefits
- Quiet operation Constant air circulation Easy installation and maintenance Space saving small diameter ducts Zoning capable right out of the box Superior heating, cooling and IAQ Eliminate hot and cold spots
Marketing Information
Energy saving products ltd presents the HE-Z Series of air handlers. This innovative product features our newly developed PSB (pressure sensing board) motor controller which is pre-set for cooling, heating and recirculation, but is field programmable providing an infinitely variable fan output. Zoning is simple as the VDC signal will vary dependent on system load, adjusting power input based on demand. Fitting where others don't, the HE-Z Series will become your ultimate choice in a multi-functional air handler.
Hi-Velocity System™ Achiever® UPQL-JAZ Series 41011200050 Multi-Positional Air Handler With VFD Motor, 2 ton, 500 cfm
BrandHi-Velocity System™
MFG #41011200050
Keller #753057
My Part ##
Last Ordered#
$2,803.00 / ea
