LSP OBFS-8030-LL ICEMKR BX FIRESTOP WHT 1/2 PEX X 1/4 COM ASSEM LL
LSP OBFS-8030-LL ICEMKR BX FIRESTOP WHT 1/2 PEX X 1/4 COM ASSEM LL

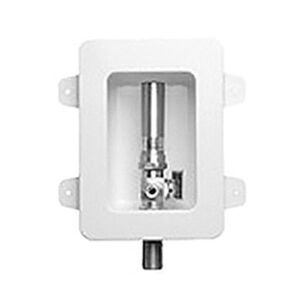

LSP™ FireStop™ Mini Ice Maker Box, 1/2 x 1/4 in Connection, PEX x Compression Connection, Quarter-Turn Ball Valve, 3-7/8 in Box Width, 2-5/8 in Box Depth, 5-11/16 in Box Height, PVC Box, White Box, 5-1/4 in Faceplate Width, 7-5/16 in Faceplate Height, 1-1/4 in Faceplate Thickness, White Faceplate, Additional Information: 20 to 125 psi Pressure Rating, 40 to 160 deg F Temperature Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$100.42 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLSP™
Additional Information20 to 125 psi Pressure Rating, 40 to 160 deg F Temperature Rating
Box ColorWhite
Box Depth2-5/8
Box Height5-11/16
Box MaterialPVC
Box Width3-7/8
Connection Size1/2 x 1/4
Connection TypePEX x Compression
Faceplate ColorWhite
Faceplate Height7-5/16
Faceplate Thickness1-1/4
Faceplate Width5-1/4
IndustryPlumbing
Valve TypeQuarter-Turn Ball
Additional Information
NSF/ANSI 61, N-6614|ASME A112.18.1|CSA B125.1 4577|IAPMO Approved|UPC Certified
Features & Benefits
- Rounded corners and compact size 1/4 in THK intumescent pad to seal the wall penetration for fire protection Deep faceplate accepts up to two-sheets of 5/8 in drywall Super durable box constructed of fire-resistant PVC Mounts on side of stud and can be installed upside down, vertically or horizontally Valves with hammer arresters do not need an access panel and can be installed in any direction Lead-free EZ-turn quarter ball valve includes long-lasting O-ring and PTFE seats and durable brass resists cracking/corrosion and allows for fingertip control of water flow
Documents
Marketing Information
The fire-rated ice maker box is similar in design to the mini ice maker, with a modern look and compact profile, but is constructed from fire-resistant PVC, with a factory-mounted intumescent pad. Suitable for use on wood or metal studs and with all pipe-types. 1/4-turn ball valve.
