1 1/2 IN Lead Free Water Pressure Reducing Valve NPT Thread Union x NPT Female EPDM Disc Max Work 300 psi Adjust 25-75 psi
1 1/2 IN Lead Free Water Pressure Reducing Valve NPT Thread Union x NPT Female EPDM Disc Max Work 300 psi Adjust 25-75 psi
1 1/2 IN Lead Free Water Pressure Reducing Valve NPT Thread Union x NPT Female EPDM Disc Max Work 300 psi Adjust 25-75 psi
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,827.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Adjustable Reduced Pressure Range Psi25 to 75
Depth11.88"
Disc MaterialEPDM
Height5.25"
IndustryPlumbing
Inlet Connection Size1-1/2"
Inlet Connection TypeUnion Joint
Inlet Thread TypeNPT
MaterialLead Free Copper Silicon Alloy
Maximum Temperature Deg F180
Maximum Working Pressure Psi300
Minimum Temperature Deg F33
Outlet Connection Size1-1/2"
Outlet Connection Thread TypeNPT
Outlet Connection TypeFemale Threaded
Prop 65 WarningYes
SeriesLFN45B-L
Standard Reduced Pressure Setting Psi50
StrainerYes
Strainer MaterialStainless Steel
Thermal Expansion BypassYes
Valve StyleStandard
Weight6 lbs.
Width9.13"
Shipping Dimensions (L x W x H)11.875" x 9.13" x 5.25"
Features & Benefits
- Lead free body construction
- NPT threaded union by NPT female connections
- Integral stainless steel strainer
- Sealed spring cage for accessible outdoor or pit installations
Documents
Marketing Information

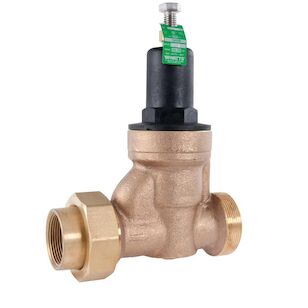

This 1 1/2 inch lead free water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a brass body, integral stainless steel strainer and thermal expansion bypass. It features NPT threaded union by NPT female end connections. The maximum working pressure is 300 psi (21 bar), and may be adjusted from 25 to 75 psi (172 to 517 kPa). The standard setting is 50 psi (345 kPa). All parts are quickly and easily serviceable without removing the valve from the line.
1 1/2 IN Lead Free Water Pressure Reducing Valve NPT Thread Union x NPT Female EPDM Disc Max Work 300 psi Adjust 25-75 psi
BrandWATTS®
MFG #0009516
Keller #753711
