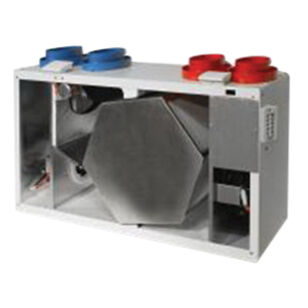

LIFEBREATH 205MAX
LIFEBREATH 205MAX
Lifebreath® Heat Recovery Ventilator, Series: MAX, 222 cu-ft/min at 0.1 in Air Flow, 1.4 A, 120 VAC, 60 Hz, 64 W Low Speed, 96 W High Speed, 20 ga Galvanized Steel, Pre-Painted, 33.62 in L, 15 in W, 18-3/4 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,003.35 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandLIFEBREATH®
Air Flow Capacity222 cu-'/min at 0.1 "
Amperage Rating1.4
FinishPre-Painted
Frequency Rating60
Height18-3/4
IndustryHVAC
Length33.62
Material20 ga Galvanized Steel
Power Rating64 W Low Speed, 96 W High Speed
SeriesMAX
Voltage Rating120
Width15
Features & Benefits
- Door ports for easy airflow balancing Balancing collars in all 4 ports for easy adjustment of airflow 2 high efficiency motorized impellers for low operating costs Top ports for flexible installation Designed for easy maintenance Thermally conductive, patented aluminum core - the cross-flow heat recovery core transfers heat between the two airstreams, it is easily removed for cleaning or service Motors and blowers - each airstream has an independent motorized impeller with multiple fan speed operations Filters - washable air filters in exhaust and supply air streams Mounting - threaded inserts at corners of the cabinet designed to accept the "S" hooks and hanging straps supplied with the unit Defrost - recirculating damper defrost systems Case - 20 ga pre-painted galvanized steel for superior corrosion-resistance, insulated to prevent exterior condensation 2-1/2 in OD drain connection 81% maximum temperature recovery Units carry a lifetime warranty on the heat recovery core and five-years replacement parts warranty 79% at 0 deg C 65 cu-ft/min apparent sensible effectiveness 77% at 100 cu-ft/min 32 deg F sensible effectiveness 68% at 100 cu-ft/min 32 deg F and 68% at 100 cu-ft/min -13 deg F sensible efficiency
LIFEBREATH 205MAX
BrandLIFEBREATH®
MFG #205MAX
Keller #755809
My Part ##
Last Ordered#
$3,003.35 / ea
