ASSE 1017, CSA and IAPMO, US Patent Number 6079625

• Features dual purpose mixing or diverting values Offers constant water temperature under changing operating conditions Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds Designed to increase the amount of usable hot water Tamper-resistant design with nickel-plated brass construction and EPDM O-rings Designed for easy maintenance and teflon coating prevents mineral build-up and extends life Lockable handwheel for accurate temperature control Straight through wiring (hot and cold at same level) Free thermostrip included to make temperature setting easy for one person to handle PTFE-coated brass shuttle, EPDM rubber O-ring Includes check valves on hot and cold port

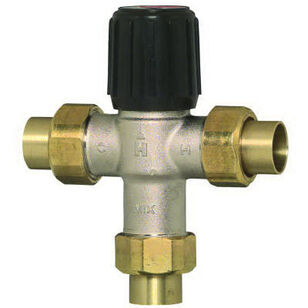

The Honeywell AM-1 series accurately adjusts, maintains and limits the hot water temperature to a desired setting selected by the user. By installing a Honeywell AM-1 mixing valve, raising water heater storage temperature setting and limiting mixed outlet water temperature to a safe temperature, more usable hot water is available.
