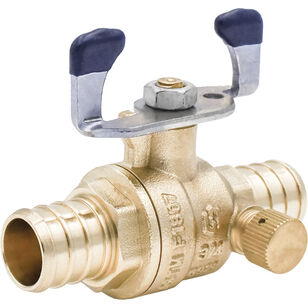

Legend Valve T-2007NL Series 101-596NL Ball Valve With Drain, 1/2 in, PEX, Brass, 400 psi
MFG #101-596NL
Item #757830
Mfr. Part #101-596NL
UPC #662545108452
Legend Valve Ball Valve With Drain, T-2007NL Series, 1/2 in Nominal, PEX Connection, Full Port, 400 psi, Water Media, 2.74 in Inlet to Outlet Length, 1.69 in Top to Inlet Center, Handle Operator, Material Standard: ANSI/ASME B16.18, ASTM C46500, C37700, ASTM F1807, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, Carbon Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free, 2.74 in L, Domestic/Import: Domestic
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$22.94Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandLegend Valve
Ball MaterialBrass
Body MaterialBrass
Connection TypePEX
Dimensions2.74 " L
Domestic/ImportDomestic
Handle MaterialCarbon Steel
Inlet to Outlet Length2.74
Material StandardANSI/ASME B16.18, ASTM C46500, C37700, ASTM F1807
MediaWater
Nominal Size1/2
Operator TypeHandle
Port TypeFull
Pressure Rating400
Seat MaterialPTFE
SeriesT-2007NL Series
Softgoods MaterialEPDM/PTFE
Stem MaterialBrass
Top to Inlet Center1.69
Trim MaterialBrass/PTFE
Shipping Dimensions (L x W x H)12.5" x 13" x 7.8"
Additional Information
NSF/ANSI 14, 61, 372
Features & Benefits
Dezincification-resistant (DZR) forged brass construction resists corrosion from exposure to a wide variety of water conditions
Durable, compact forged brass body is ideal for confined plumbing installations
Different end connections permit transition from copper tubing to PEX tubing
Maintenance-free dual O-ring, blowout-proof stem design
Self-cleaning chrome-plated ball resists mineral build-up
The capped waste port (some models) permits component isolation and drain-down, for servicing or replacement operations
The waste port (some models) is located at the PEX end, verses solder cup end, reducing the chance of being clogged with excess solder
