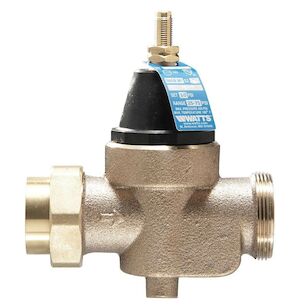

WATTS® LFN45BM1-U Series 0009471 Pressure Reducing Valve With Union, 1/2 in Nominal, FPT, 400 psi, 33 to 180 deg F
WATTS® LFN45BM1-U Series 0009471 Pressure Reducing Valve With Union, 1/2 in Nominal, FPT, 400 psi, 33 to 180 deg F
WATTS® Pressure Reducing Valve With Union, LFN45BM1-U Series, 1/2 in Nominal, FPT Connection, 400 psi, Copper Silicon Body, Engineered Composite Trim, Elastomer/EPDM/Thermoplastic Softgoods, 33 to 180 deg F, 6-1/4 in H x 4-11/16 in W x 2-1/4 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$390.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicon
Connection TypeFPT
Dimensions6-1/4 " H x 4-11/16 " W x 2-1/4 " D
IndustryPlumbing
Nominal Size1/2
Pressure Rating400
SeriesLFN45BM1-U Series
Softgoods MaterialElastomer/EPDM/Thermoplastic
Temperature Rating33 to 180
Trim MaterialEngineered Composite
Shipping Dimensions (L x W x H)7.375" x 5.63" x 2.44"
Additional Information
ANSI A112.26.2 Specified|ANSI/NSF 61 Certified|ASSE 1003 Specified|CSA B356 Certified|IAPMO Listed|UPC Certified
Features & Benefits
- Integral stainless steel strainer removable for cleaning Sealed spring cage for accessible outdoor or waterworks pit installations Serviceable in-line Thermoplastic seat and cage
Documents
Marketing Information
This 1/2 in water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead-free brass body construction, NPT threaded union inlet and NPT female outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 deg F. Suitable for up to 400 psi, the pressure range can be adjusted from 25 to 75 psi with the standard setting at 50 psi.
WATTS® LFN45BM1-U Series 0009471 Pressure Reducing Valve With Union, 1/2 in Nominal, FPT, 400 psi, 33 to 180 deg F
BrandWATTS®
MFG #0009471
Keller #758394
My Part ##
Last Ordered#
$390.50 / ea
