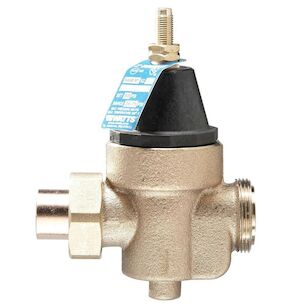

WATTS® LFN45B Series 0009480 Pressure Reducing Valve, 3/4 in Nominal, Union Solder x FNPT, 400 psi, 33 to 180 deg F
WATTS® LFN45B Series 0009480 Pressure Reducing Valve, 3/4 in Nominal, Union Solder x FNPT, 400 psi, 33 to 180 deg F
WATTS® Pressure Reducing Valve, LFN45B Series, 3/4 in Nominal, Union Solder x FNPT Connection, 400 psi, Water Media, 3-7/16 in Inlet to Outlet Length, 4-9/16 in Top to Inlet Center, Copper Silicon Alloy Body, Thermoplastic Seat, Elastomer Disc, Lead-Free, 33 to 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$394.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicon Alloy
Connection TypeUnion Solder x FNPT
Disc MaterialElastomer
EA Height2.63"
EA Length5.625"
EA Weight1.88 lbs.
EA Width7.375"
Inlet to Outlet Length3-7/16
MediaWater
Net Content1
Nominal Size3/4
Pressure Rating400
Seat MaterialThermoplastic
SeriesLFN45B Series
Temperature Rating33 to 180
Top to Inlet Center4-9/16
Shipping Dimensions (L x W x H)5.625" x 7.38" x 2.63"
Additional Information
ASSE 1003|ANSI A112.26.2|Buy American Act Compliant|CSA B356|cUPC Certified|IAPMO Certified|MIL-V-18146B Type I|NSF/ANSI 61 Annex G
Features & Benefits
- Serviceable in line Integral stainless steel strainer removable for cleaning Thermoplastic seat and cage Sealed spring cage for accessible outdoor or pit installations
Documents
Marketing Information
This 3/4 inch lead free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free cast copper silicon alloy body construction, solder union inlet and NPT female outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 psi (27.6 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
