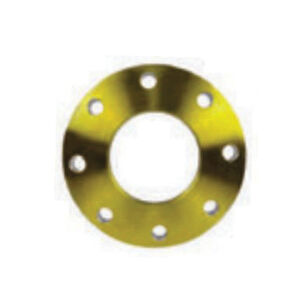

SIGMA PIPE 1FLS1515 STEEL PLATE 8 SLIP-ON FLANGE (SIZE 13.5)
SIGMA PIPE 1FLS1515 STEEL PLATE 8 SLIP-ON FLANGE (SIZE 13.5)
SIGMA Piping Products™ Plate Flange, Flange Fitting, 8 in Connection Size 1, Slip-On Connection Type 1, 8 Connection Size 2, Slip-On Connection Type 2, Slip|Slip Connection Type, Steel, Steel Material Construction, 0.69 in Flange Thickness, 8 Bolt Holes, 7/8 in Bolt Hole Dia, Pressure Class: 125 lb, 175 psi, 8.7 in ID x 13.5 in OD, Additional Information: 11-3/4 in Bolt Circle
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$90.11Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSIGMA PIPING PRODUCTS
Bolt Hole Diameter7/8"
Connection Size 18"
Connection Size 28
Connection TypeSlip|Slip
Connection Type 1Slip-On
Connection Type 2Slip-On
Dimensions8.7" ID x 13.5" OD
Fitting TypeFlange
Flange Thickness0.69"
IndustryFire Protection
MaterialSteel
Material ConstructionSteel
Number of Bolt Holes8
Pressure Class125 lb
Pressure Rating175 psi
Additional Information
11-3/4 in Bolt Circle
Features & Benefits
- Bolts shall be smaller in diameter than the normal bolt hole diameter
- These flanges have the same diameter and drilling as class 125 cast iron flanges (ANSI B16.1)
- Minimum bolt lengths shall be the sum of the mating flange maximum thicknesses, the gasket and the depth of the nut plus 1/8 in minimum before torquing if threaded rods are used, they shall be the same length as the bolts determined previously, plus the depth of the nuts
Documents
SIGMA PIPE 1FLS1515 STEEL PLATE 8 SLIP-ON FLANGE (SIZE 13.5)
BrandSIGMA PIPING PRODUCTS
MFG #1FLS1515
Keller #759771
