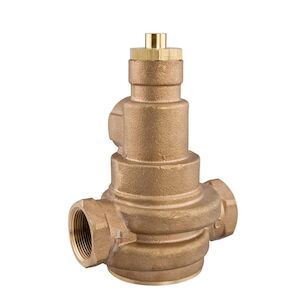

WATTS® LFN170-M3 0559128 Hot Water Master Tempering Valve, 2 in, FNPT, 7 gpm, 125 psi, Brass, Lead-Free
WATTS® LFN170-M3 0559128 Hot Water Master Tempering Valve, 2 in, FNPT, 7 gpm, 125 psi, Brass, Lead-Free
WATTS® Hot Water Master Tempering Valve, Model: LFN170-M3, 2 in Nominal, FNPT Connection, 7 gpm Flow Rate, 125 psi, 18.63 Cv Flow Coefficient (Cv), Brass, Water Service, Lead-Free, 200 deg F Maximum Hot Water, 40 to 80 deg F Cold Water Inlet, 120 to 180 deg F Hot Water Inlet, 90 to 180 deg F Adjustable
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$8,848.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Connection TypeFNPT
Flow Coefficient (Cv)18.63
Flow Rate7
MaterialBrass
ModelLFN170-M3
Nominal Size2
Pressure Rating125
Service TypeWater
Temperature Rating200 deg F Maximum Hot Water, 40 to 80 deg F Cold Water Inlet, 120 to 180 deg F Hot Water Inlet, 90 to 180 deg F Adjustable
Shipping Dimensions (L x W x H)6.75" x 4.13" x 10.75"
Additional Information
ASSE 1017|IAPMO Listed|cUPC Listed|CSA B125.3|US Green Building Council Member
Features & Benefits
- Paraffin based thermostat to sense and adjust outlet temperature Dirt and lime-resistant poppet and seat design Virtual shut-off if supply pressure fails Vandal-resistant locking mechanism to secure temperature setting Polysulfone internals resist excessive heat, liming and corrosion and a single seat design ensures tight shut-off in the event of cold water supply loss Designed for installation at the hot water source Rough-in dimensions are identical to earlier LFN170 models making replacement fast and easy Factory tested
Documents
Marketing Information
This 2 inch lead free master mixing valve is designed for use in commercial and institutional applications, to mix hot and cold water to reduce high service water temperature to the building distribution piping system. It is designed for installation at the hot water source. Features a lead free brass body construction, a copper paraffin thermostat assembly and a lockable temperature adjustment for increased safety. Polysulfone internals resist excessive heat, liming and corrosion, and a single-seat design ensures tight shut-off in the event of cold water supply loss. Listed to ASSE 1017 and IAPMO cUPC in compliance with CSA B125.3. the temperature range is 90 to 180 F (32 to 82 C) and the maximum pressure is 125 psi.
WATTS® LFN170-M3 0559128 Hot Water Master Tempering Valve, 2 in, FNPT, 7 gpm, 125 psi, Brass, Lead-Free
BrandWATTS®
MFG #0559128
Keller #760891
My Part ##
Last Ordered#
$8,848.00 / ea
