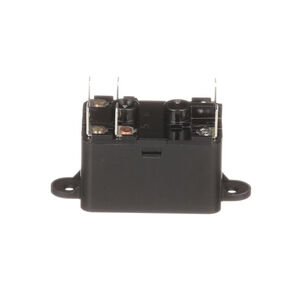

WHITE-RODGERS™ 90-380 General Purpose Fan Relay, 24 VAC Coil, 125 mA, SPNO-SPNC
WHITE-RODGERS™ 90-380 General Purpose Fan Relay, 24 VAC Coil, 125 mA, SPNO-SPNC
WHITE-RODGERS™ General Purpose Fan Relay, 24 VAC, 125 mA, 24 VAC Coil, SPNO-SPNC Contact Form, Quick-Connect Terminal, 1.265 in Overall Width, 2.67 in Overall Depth, 1-1/2 in Overall Height, Additional Information: 3 VA Nominal Sealed, 4 VA Inrush Power Rating, 50/60 Hz Frequency Rating, 77 Ohm Resistance, 100000 cycles Electrical, 1000000 cycles Mechanical Operating Cycles, -40 to 150 deg F Temperature Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$24.96 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWHITE-RODGERS™
Additional Information3 VA Nominal Sealed, 4 VA Inrush Power Rating, 50/60 Hz Frequency Rating, 77 Ohm Resistance, 100000 cycles Electrical, 1000000 cycles Mechanical Operating Cycles, -40 to 150 deg F Temperature Rating
Amperage Rating125
Coil Voltage24
Contact FormSPNO-SPNC
Overall Depth2.67
Overall Height1-1/2
Overall Width1.265
Terminal TypeQuick-Connect
Voltage Rating24
Additional Information
CSA File No. LR13360|UL File No. E12139/E22381
Features & Benefits
- Compact, totally enclosed design Quiet, reliable and economical Class B insulation Continuous-duty cycle Contact rating - 12 A continuous, 60 A inrush at 125 VAC, 8 A continuous, 48 A inrush at 250 VAC inductive, 18 A continuous at 277 VAC resistive Operates in any position isolated coil and mounting bracket
Documents
WHITE-RODGERS™ 90-380 General Purpose Fan Relay, 24 VAC Coil, 125 mA, SPNO-SPNC
BrandWHITE-RODGERS™
MFG #90-380
Keller #761413
