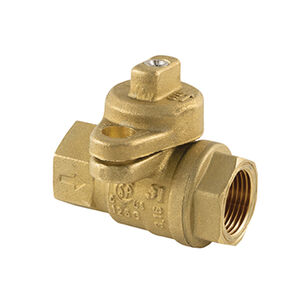

Jomar Valve® 175-LWN Series 240-006B Utility Gas Ball Valve, 1-1/4 in, Brass, 175 psig

Name: Jomar Valve® 175-LWN Series 240-006B Utility Gas Ball Valve, 1-1/4 in, Brass, 175 psig
Brand: Jomar Valve®
SKU: 762087
Price: 117.41 USD
Availability: InStock

Jomar Valve®

Jomar Valve® 175-LWN Series 240-006B Utility Gas Ball Valve, 1-1/4 in, Brass, 175 psig

MFG #240-006B

Item #762087

Mfr. Part #240-006B

UPC #662527291844

Jomar Valve® Utility Gas Ball Valve, 175-LWN Series, 1-1/4 in Nominal, Full Port, 175 psig, Gas Media, 1.23 in Orifice, 3.82 in Inlet to Outlet Length, 2.46 in Top to Inlet Center, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, Buna-N Packing, Brass Handle, Buna-N/FKM/PTFE Softgoods, Finish: Brass-Coated, -40 to 300 deg F, 3.82 in L, Domestic/Import: Domestic, Additional Information: Locking Wing Handle Operator, ANSI B16.33 Material Standard, Brass Ball Material

Why Create an Account?

Ability to track orders
More Options & Savings
Amazing Customer Service

$117.41 / ea

In Stock

Attributes
Additional Information
Features & Benefits
Documents

Attributes

BrandJomar Valve®

Additional InformationLocking Wing Handle Operator, ANSI B16.33 Material Standard, Brass Ball Material

Body MaterialBrass

Dimensions3.82 " L

Domestic/ImportDomestic

FinishBrass-Coated

Handle MaterialBrass

IndustryPlumbing

Inlet to Outlet Length3.82

MediaGas

Nominal Size1-1/4

Orifice Size1.23

Packing MaterialBuna-N

Port TypeFull

Pressure Rating175

Seat MaterialPTFE

Series175-LWN Series

Softgoods MaterialBuna-N/FKM/PTFE

Stem MaterialBrass

Temperature Rating-40 to 300

Top to Inlet Center2.46

Trim MaterialBrass/PTFE

Jomar Valve® 175-LWN Series 240-006B Utility Gas Ball Valve, 1-1/4 in, Brass, 175 psig

BrandJomar Valve®

MFG #240-006B

Keller #762087

My Part ##

Last Ordered#

Price

$117.41 / ea
