1/2 IN Lead Free Pressure Temperature Gauge Bottom Entry 3 IN Dial 0 to 75 psi
1/2 IN Lead Free Pressure Temperature Gauge Bottom Entry 3 IN Dial 0 to 75 psi
1/2 IN Lead Free Pressure Temperature Gauge Bottom Entry 3 IN Dial 0 to 75 psi
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$259.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Case MaterialSteel
Depth5"
Dial Size3''
Entry StyleBottom
FinishBlack Enamel
Height3"
IndustryPlumbing
Inlet Connection Size1/2"
Inlet Connection TypeMale Threaded
Maximum Operating Temperature Deg F320
Minimum Temperature Deg F60
Pressure Scale0 to 75 psi
Prop 65 WarningYes
Sensing ElementYes
SeriesLFDPTG-1
Stem Shaft MaterialLead Free Brass
Temperature Range60 to 320 deg F
Vr Retaining ValveYes
Weight0.55 lbs.
Width4"
Shipping Dimensions (L x W x H)4.625" x 3.13" x 2.13"
Features & Benefits
- Black enamel steel case
- Kostil polymer window
- Copper alloy bourdon sensing element
- Tin alloy welding
Documents
Marketing Information

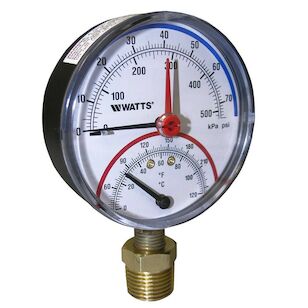

This 1/2 inch lead free bottom entry pressure temperature gauge is used in commercial, residential, and institutional HVAC applications. It features a black enamel steel case, Kostil polymer window, 1/2 inch NPT connection, bimetal spiral spring, and copper alloy Bourdon tube pressure element with ASME Type B accuracy. This gauge features a 3 inch dial with pressure rating scale from 0 to 75 psi and temperature range 32 to 248 degrees F.
1/2 IN Lead Free Pressure Temperature Gauge Bottom Entry 3 IN Dial 0 to 75 psi
BrandWATTS®
MFG #0121664
Keller #764271
My Part ##
Last Ordered#
$259.00Â /Â ea
