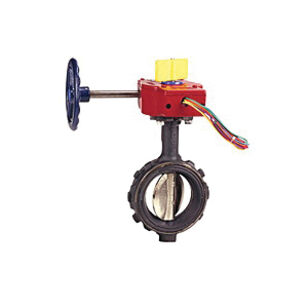

NIBCO WD3510-8-6IN WFR BFLY VLV
NIBCO WD3510-8-6IN WFR BFLY VLV
NIBCO® Wafer Style Butterfly Valve, 6 in Nominal, 250 psi, Handwheel Actuator, 9.49 in Top to Inlet Center, Ductile Iron Body, Stainless Steel Stem, EPDM Seal, Ductile Iron Disc, Cast Iron Handle, Material Standard: ASTM A536, 582 Type 416, 395, 10-1/4 in OD x 17-3/4 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,951.00 / ea
Out of Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Actuator TypeHandwheel
Body MaterialDuctile Iron
Dimensions10-1/4 " OD x 17-3/4 " H
Disc MaterialDuctile Iron
Handle MaterialCast Iron
IndustryPlumbing
Material StandardASTM A536, 582 Type 416, 395
Nominal Size6
Pressure Rating250
Seal MaterialEPDM
Stem MaterialStainless Steel
Top to Inlet Center9.49
Warranty5 Year Limited
Additional Information
UL Listed|FM Approved|MSS SP-67
Documents
Marketing Information
The NIBCO® ductile iron butterfly valve is designed specifically to meet the rigorous requirements of automatic sprinkler systems. The unique EPDM molded in seat liner with ductile iron disc provides bubble tight shut-off at rated pressure. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 in. Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and fire protection systems. NIBCO® butterfly valves are backed by the NIBCO® 5 year 125% limited warranty.
NIBCO WD3510-8-6IN WFR BFLY VLV
BrandNIBCO®
MFG #NLH801K
Keller #766728
My Part ##
Last Ordered#
$1,951.00 / ea
