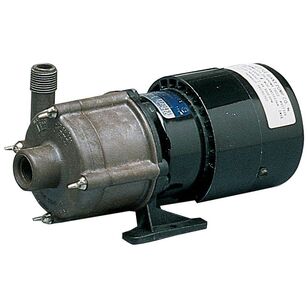

Little GIANT® 581604 Magnetic Drive Pump, 9.75 gpm, 1.3 A, 115 VAC, 1/25 hp
Little GIANT® 581604 Magnetic Drive Pump, 9.75 gpm, 1.3 A, 115 VAC, 1/25 hp
Little GIANT® Magnetic Drive Pump, Model: TE-3-MD-HC, 1/2 in Suction, 1/2 in Discharge, 9.75 gpm Flow Rate, 1.3 A, 115 VAC, 1/25 hp, 1 ph, 60 Hz, Speed Rating: 3100 rpm, 16.3 ft Maximum Feet of Head, 6 ft L Cord, Power Rating: 107 W, 200 deg F Maximum, Working Pressure: 7.1 psi, Polyphenylene Sulfide Impeller, Polyphenylene Sulfide Body, 8.9 in L x 4 in W x 5 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$874.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLittle GIANT®
Amperage Rating1.3
Body MaterialPolyphenylene Sulfide
Cord Length6 ft
Dimensions8.9 " L x 4 " W x 5 " H
Discharge Size1/2"
Flow Rate9.75
Frequency Rating60
HP Rating1/25
Impeller MaterialPolyphenylene Sulfide
IndustryPlumbing
Maximum Feet of Head16.3 ft
Maximum Temperature200
ModelTE-3-MD-HC
Phase1
Power Rating107
Speed Rating3100
Suction Size1/2"
Voltage Rating115
Working Pressure7.1
Additional Information
cCSAus Certified|UR Listed
Features & Benefits
- The TE-3-MD-HC's motor is totally enclosed fan cooled (TEFC) for use in dusty, dirty, and damp environments The glass filled polyphenylene sulfide magnet housing and volute components provide an added layer of protection and strength Magnets turn the impeller to eliminate seal wear and leakage The result is a long service life that's important when dealing with highly corrosive fluids 1.1 specific gravity Fluoroelastomer (FKM) O-ring Ceramic thrust washers and shaft Run dry capability up to 8 hr
Marketing Information
Operating reliability and flexibility are the hallmarks of the Little Giant TE-3-MD-HC series chemical transfer pumps. Typical industrial applications include corrosive solutions and solvents with high abrasive concentrations. This pump also features a 1/25 hp enclosed, fan cooled (TEFC) motor for added safety and heavy-duty performance.
