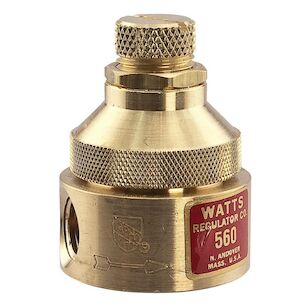

1/4 IN Lead Free Mini Water Pressure Regulator Female Thread x Female Thread 0-25 psi
1/4 IN Lead Free Mini Water Pressure Regulator Female Thread x Female Thread 0-25 psi
1/4 IN Lead Free Mini Water Pressure Regulator Female Thread x Female Thread 0-25 psi
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$458.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Adjustable Reduced Pressure Range Psi0 to 25
Depth2"
Disc MaterialBuna-N
Height3"
IndustryPlumbing
Inlet Connection Size1/4"
Inlet Connection TypeFemale Threaded
Inlet Thread TypeFPT
MaterialLead Free Brass
Maximum Temperature Deg F140
Maximum Working Pressure Psi300
Minimum Temperature Deg F33
Outlet Connection Size1/4"
Outlet Connection Thread TypeFPT
Outlet Connection TypeFemale Threaded
Prop 65 WarningYes
SeriesLF560
Standard Reduced Pressure Setting Psi15
Valve StyleStandard
Weight0.9 lbs.
Width2"
Shipping Dimensions (L x W x H)2" x 2" x 3"
Features & Benefits
- Lead free brass body
- Stainless steel stem and spring
- Oversized orifice
- Heavy duty slotted and knurled adjusting screw
Documents
Marketing Information
This 1/4 inch lead free mini water pressure regulator is designed to reduce incoming water pressure to protect plumbing system components and reduce water consumption. It is used in industrial process applications to regulate water pressure in systems where a small economical package is required. It has an oversized orifice that is ideal for use in miscellaneous plumbing applications and OEM equipment such as a travel trailer. It consists of a rugged lead free brass body, female NPT connections, plugged gauge port, Buna-N seat and diaphragm, stainless steel stem and spring, and a heavy duty slotted and knurled adjusting screw. The reduced pressure range is 0 to 25 psi (0 to 1.7 bar) and is factory set at 15 psi (1.0 bar).
1/4 IN Lead Free Mini Water Pressure Regulator Female Thread x Female Thread 0-25 psi
BrandWATTS®
MFG #0121254
Keller #768211
