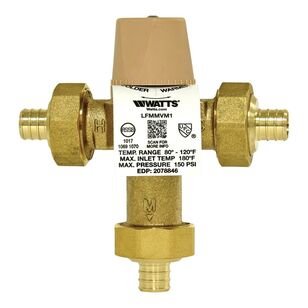

WATTS® LFMMV Series 0559117 Thermostatic Mixing Valve, 3/4 x 3/4 x 3/4 in Nominal, Crimp x Crimp x Crimp, 0.5 to 20 gpm
WATTS® LFMMV Series 0559117 Thermostatic Mixing Valve, 3/4 x 3/4 x 3/4 in Nominal, Crimp x Crimp x Crimp, 0.5 to 20 gpm
WATTS® Thermostatic Mixing Valve, LFMMV Series, 3/4 x 3/4 x 3/4 in Nominal, Crimp x Crimp x Crimp Connection, 150 psi, 0.5 to 20 gpm Flow Rate, Water Media, Copper Silicon Alloy Body, 200 deg F, 5-11/16 in H x 5-1/2 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$759.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicon Alloy
Connection TypeCrimp x Crimp x Crimp
Dimensions5-11/16 " H x 5-1/2 " W
EA Height2.625"
EA Length6.313"
EA Weight2.5 lbs.
EA Width4.5"
Flow Rate0.5 to 20
IndustryPlumbing
MediaWater
Net Content1
Nominal Size3/4 x 3/4 x 3/4
Pressure Rating150
SeriesLFMMV Series
Temperature Rating200
Shipping Dimensions (L x W x H)6.313" x 4.5" x 2.63"
Additional Information
ASME A112.1070|ASSE 1017/1069/1070|CSA B125.70/B125.3|cUPC Certified|IAPMO Certified|NSF/ANSI/CAN 61/372
Features & Benefits
- Lead free brass construction Thermal actuation technology for precise temperature control Locking mechanism secures temperature setting
Marketing Information
This 3/4 IN lead free thermostatic mixing valve is designed for commercial, residential, or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free brass body with crimp end connections for PEX tubing, integral filter washers, solid wax hydraulic principle thermostat, and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar).
WATTS® LFMMV Series 0559117 Thermostatic Mixing Valve, 3/4 x 3/4 x 3/4 in Nominal, Crimp x Crimp x Crimp, 0.5 to 20 gpm
BrandWATTS®
MFG #0559117
Keller #772683
