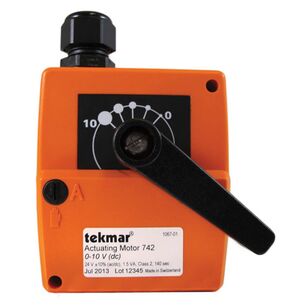

Actuating Motor, 0-10 VDC
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,333.00 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandTekmar®
Ambient Temperature Range32 to 122 degree F
ClassClass 2
Control Signal0 - 10 VDC or 2 - 10 VDC Selected by Switch Setting, 100 kOhm Maximum Input Impedance
Depth3.56"
Enclosure MaterialPolycarbonate
Height3.63"
Indoor OutdoorIndoor
IndustryHydronics
NEMA RatingNEMA 1
Position Signal Output0 - 10 or 2 - 10 VDC Follows Switch Setting, 3 kOhm Maximum Load Impedance
Power Rating2.5 VA
Power Supply24 V plus /-10 percent (AC/DC)
Rated Torque10 N-m
Relative Humidity95 percent Non-Condensing
Rotation Angle90 degree
Run Time140 s
Suitable For Use WithTekmar Brass Mixing Valves 710 to 724
Width3.13"
Features & Benefits
- Compatible with tekmar brass mixing valves 710 to 724
- The rotation direction is selected by a toggle switch
- Reversible scale plate
- Manual override
Documents
Actuating Motor, 0-10 VDC
BrandTekmar®
MFG #742
Keller #772726
