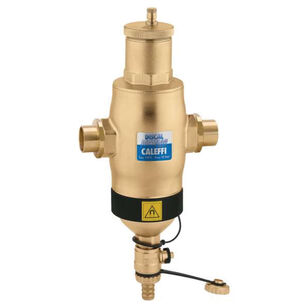

Caleffi 5461 Series 546197A Discaldirtmag Air/Dust Separator, 1-1/4 in, Sweat, Brass
Caleffi 5461 Series 546197A Discaldirtmag Air/Dust Separator, 1-1/4 in, Sweat, Brass
Caleffi Discaldirtmag Air/Dust Separator, 5461 Series, 1-1/4 in Nominal, Sweat Connection, 150 psi, 32 to 250 deg F Working, 4 fps Velocity Rating, Brass, 12-3/4 in H x 6-3/16 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$666.00Â /Â ea
In Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandCaleffi
Connection TypeSweat
Dimensions12-3/4 " H x 6-3/16 " W
IndustryHydronics
MaterialBrass
Nominal Size1-1/4
Pressure Rating150
Series5461 Series
Temperature Rating32 to 250 deg F Working
Velocity Rating4
Features & Benefits
- 0.2 mil particle separation capacity Up to 100% removal air separation efficiency Up to 100% removal ferrous impurities separation efficiency Has 3-in-1 high-performance functionality to continuously remove all air and debris, including ferrous and non-ferrous impurities in a sealed hydronic heating and cooling system Micro-bubble air separation, widening of the cross section decreases the flow velocity and the internal element facilitates the release of micro-bubbles Micro-particle dirt separation the internal element separates and collects all the particles in the dirt collection chamber, collected particles are discharged with the drain valve, while the system is operating Magnetic separation of ferrous impurities the powerful, external rare earth magnet captures ferrous impurities, removing the magnetic ring allows for discharging through drain valve even with system operating Stainless steel float guide pin and linkage, glass reinforced nylon interlaced element
Documents
Caleffi 5461 Series 546197A Discaldirtmag Air/Dust Separator, 1-1/4 in, Sweat, Brass
BrandCaleffi
MFG #546197A
Keller #772970
My Part ##
Last Ordered#
$666.00Â /Â ea
