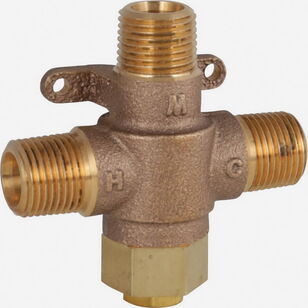

ACORn® ST70-12 Lavatory Tempering Valve, 1/2 in Nominal, NPT, 4.5 gpm, 125 psi, 85 to 115 deg F, Brass Body
ACORn® ST70-12 Lavatory Tempering Valve, 1/2 in Nominal, NPT, 4.5 gpm, 125 psi, 85 to 115 deg F, Brass Body
ACORn® Lavatory Tempering Valve, 1/2 in Nominal, NPT Connection, 125 psi, 4.5 gpm Flow Rate, Water Media, 3-1/4 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, Brass Body, 85 to 115 deg F, 3-1/4 in H x 3-1/4 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandACORn®
Body MaterialBrass
Connection TypeNPT
Dimensions3-1/4 " H x 3-1/4 " W
Flow Rate4.5
IndustryPlumbing
Inlet to Outlet Length3-1/4
MediaWater
Nominal Size1/2
Pressure Rating125
Temperature Rating85 to 115
Top to Inlet Center3-1/4
Warranty1 Year
Additional Information
ASSE 1070|CSA B125.3|cUPC Certified|NSF/ANSI 61
Features & Benefits
- Lead-free certified DZR brass body with corrosion-resistant and lead-free internal component Integral and cartridge-style checks with accessible screens to prevent backflow and to filter debris from entering the valve Temperature adjustment is made using an Allen Wrench A locknut on the bonnet prevents unauthorized or accidental temperature adjustment Commercial quality paraffin actuator provides repeatable, reliable performance Factory set to 105 deg F (41 deg C) and field adjustable Integral mounting feet
Marketing Information
The lavatory tempering valve shall be IAPMO lab certified per ASSE 1070 at 0.25 gpm (1.0 Lpm) and CSA standards and shall have a solid brass body with corrosion-resistant internal components. It shall include integral checks with screens to prevent backflow and to filter debris from entering the valve. Temperature adjustment shall be made using an Allen wrench and a locknut on the bonnet to prevent unauthorized or accidental temperature adjustment. Valve shall provide 4 gpm (15 Lpm) with 3/8 in compression connection and 4.5 gpm (17 Lpm) capacity with the 1/2 in NPT connection at 45 psi (310 kPa) differential. Temperature range shall be 85 to 115 deg F. Valve shall be Acorn model ST70.
ACORn® ST70-12 Lavatory Tempering Valve, 1/2 in Nominal, NPT, 4.5 gpm, 125 psi, 85 to 115 deg F, Brass Body
BrandACORn®
MFG #ST-70-12
Keller #773437
My Part ##
Last Ordered#
Call for Price / ea
