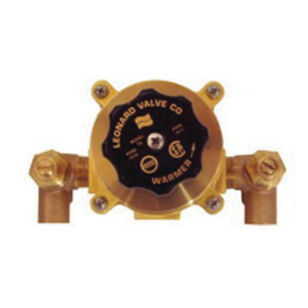

LEONARD® ECO-MIX™ TA-LF TA-LF-F Thermostatic Mixing Valve, 1/2 in Nominal, Sweat, 0.5 to 9 gpm, 125 psi, 110 deg F
LEONARD® ECO-MIX™ TA-LF TA-LF-F Thermostatic Mixing Valve, 1/2 in Nominal, Sweat, 0.5 to 9 gpm, 125 psi, 110 deg F
LEONARD® ECO-MIX™ Thermostatic Mixing Valve, Model: TA-LF, 1/2 in Nominal, Sweat Connection, 125 psi, 0.5 to 9 gpm Flow Rate, Water Media, 5 in Inlet to Outlet Length, Bi-Metal Body, 110 deg F, 3-1/2 in W, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$675.00 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLEONARD®
Body MaterialBi-Metal
Connection TypeSweat
Dimensions3-1/2 " W
Domestic/ImportDomestic
Flow Rate0.5 to 9
IndustryPlumbing
Inlet to Outlet Length5
MediaWater
ModelTA-LF
Nominal Size1/2
Pressure Rating125
Prop 65 WarningYes
Temperature Rating110
Features & Benefits
- Thermostatic mixing valve for critical line control/process applications DURA-trol® solid bi-metal thermostat directly linked to valve porting to control the intake of hot and cold-water and compensate for supply temperature or pressure fluctuations, DURA-trol® is highly responsive and cannot be damaged by extremes in temperature Integral combination check stops Internal parts of lead-free bronze, lead-free brass and stainless steel Temperature selector handle with scale, cold-hot
Marketing Information
Thermostatic water mixing valve, DURA-trol® solid bi-metal thermostat directly linked to valve porting to control the intake of hot and cold-water and compensate for supply temperature or pressure fluctuations. DURA-trol® is highly responsive and cannot be damaged by extremes in temperature. 1/2 in sweat inlets and outlet, 0.5 gpm (1.9 Lpm) minimum flow capacity. Integral combination check stops, internal parts of lead-free bronze, lead-free brass and stainless steel, Integral wall support, temperature selector handle, HOT-COLD with directional indicators, maximum operating pressure 125 psi (860 kpa), adjustable high-temperature limit stop set for 110 deg F (49 deg C), locking temperature adjustment knob.
LEONARD® ECO-MIX™ TA-LF TA-LF-F Thermostatic Mixing Valve, 1/2 in Nominal, Sweat, 0.5 to 9 gpm, 125 psi, 110 deg F
BrandLEONARD®
MFG #TA-LF-F
Keller #774342
My Part ##
Last Ordered#
$675.00 / ea
