SIOUX 833-625DNQ DRAIN FINISH LINE 2 PJ DI 5NB R&S S
SIOUX 833-625DNQ DRAIN FINISH LINE 2 PJ DI 5NB R&S S

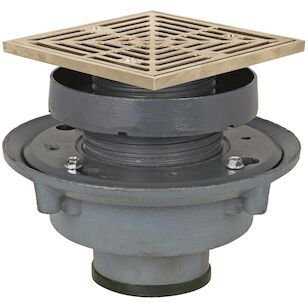

Sioux Chief Adjustable Flashing Drain, 833 Series, 2 in Nominal, Push-Joint Connection, Iron Drain, 5-7/8 in L x 5-7/8 in W Grid, Nickel Bronze Grid, 5 to 7 in H, Domestic/Import: Import, Additional Information: Square Shape, 12.75 sq-in Strainer Free Area
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$884.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Additional InformationSquare Shape, 12.75 sq-" Strainer Free Area
Connection TypePush-Joint
Dimensions5 to 7 " H
Domestic/ImportImport
Drain MaterialIron
Grid MaterialNickel Bronze
Grid Size5-7/8 " L x 5-7/8 " W
IndustryPlumbing
Nominal Size2
Series833 Series
Additional Information
ASME A112.6.3
Features & Benefits
- Patent #7,735,512 Adjustable AFTER the pour Cast iron base adapter with ductile iron clamping collar, coring sleeve, head adapter, poly coring plug, and neoprene push-joint gasket Nickel bronze and stainless steel strainers for use in pedestrian traffic areas
Documents
Marketing Information
Sioux Chief 833 series FinishLine adjustable above-grade flashing drain shall be used where necessary in drainage systems. Flashing drain shall allow adjustment of 1-1/4" before the concrete pour, and 1-1/4" after the concrete pour. Flashing drain shall have an invertible flashing collar with openings to allow secondary drainage and a cast iron base adapter. Strainer shall meet applicable load requirements for intended use. Trap primer port shall be threaded 1/2" FIP for optional connection. Designed in accordance with ASME A112.6.3.
SIOUX 833-625DNQ DRAIN FINISH LINE 2 PJ DI 5NB R&S S
BrandSioux Chief
MFG #833-625DNQ
Keller #774539
