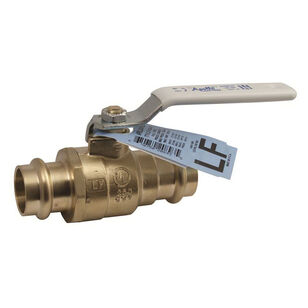

Apollo® 77VLF-140 Series 77VLF14A01 Ball Valve, 4 in, Press, Brass, 300 psi
Apollo® 77VLF-140 Series 77VLF14A01 Ball Valve, 4 in, Press, Brass, 300 psi
Apollo® Ball Valve, 77VLF-140 Series, 4 in Nominal, Press Connection, Full Port, 2-Piece, Standard, 300 psi, Steam, Water Media, 4 in Orifice, 10.35 in Inlet to Outlet Length, 5.7 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM B16, C36000, Brass Body, RPTFE Seat, 316 Stainless Steel Stem, EPDM Seal, 316 Stainless Steel/EPDM/RPTFE Trim, RPTFE Packing, PVC, Steel Handle, 316 Stainless Steel Ball, EPDM/RPTFE Softgoods, Lead-Free, Yellow, 0 to 250 deg F, 10.35 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,106.56 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
ApplicationFor potable water
Ball Material316 Stainless Steel
Body MaterialBrass
ColorYellow
Configuration2-Piece, Standard
Connection TypePress
Dimensions10.35 " L
Domestic/ImportDomestic
Handle MaterialPVC, Steel
IndustryPlumbing
Inlet to Outlet Length10.35
Lead-FreeYes
Material StandardASTM B16, C36000
MediaSteam, Water
Nominal Size4
Operator TypeLever Handle
Orifice Size4
Packing MaterialRPTFE
Port TypeFull
Pressure Rating300
Seal MaterialEPDM
Seat MaterialRPTFE
Series77VLF-140 Series
Softgoods MaterialEPDM/RPTFE
Stem Material316 Stainless Steel
Temperature Rating0 to 250
Top to Inlet Center5.7
Trim Material316 Stainless Steel/EPDM/RPTFE
Warranty5 Year
Shipping Dimensions (L x W x H)19.66" x 6.69" x 9.08"
Additional Information
ANSI Z1157|ARRA Compliant|cUPC Certified|IAPMO PS-117|MSS-SP-110
Features & Benefits
- Lead-free, ANSI 3rd party certified and listed Two-piece, heavy pattern forged design Adjustable stem packing Fast, reliable, economical press installation Leak Before Press® technology Blowout-proof stem Dezincification-resistant materials Silicone-free assembly 100% factory tested Made in USA, ARRA compliant
Marketing Information
The APOLLOPRESS® 77VLF Series lead-free two-piece press ball valve is ideal for installation in most plumbing and heating systems, including potable water. Now with Leak Before Press® feature and 300 psig maximum working pressure. Proudly made in the USA.
