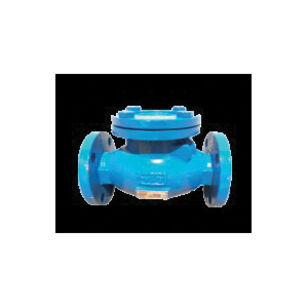

RWV® 435 435-6 IBBM Swing Check Valve, 6 in Nominal, Flanged, 125 psi, Cast Iron Body
RWV® 435 435-6 IBBM Swing Check Valve, 6 in Nominal, Flanged, 125 psi, Cast Iron Body
RWV® IBBM Swing Check Valve, Model: 435, Flanged Connection, 6 in Nominal, 125 psi, Pressure Class: 125 psi, Gas, Oil, Steam, Water Media, 14 in Inlet to Outlet Length, 8.54 in Top to Inlet Center, 830 Cv Flow Coefficient (Cv), Material Standard: ASTM A124-C63200, ASTM A126 Class B, ASTM A307 Class B, Cast Iron Body, Bronze Stem, Bronze/Fiber/Graphite Seal, Bronze Disc, 14 to 353 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,970.11 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRWV®
Body MaterialCast Iron
Connection TypeFlanged
Disc MaterialBronze
Flow Coefficient (Cv)830
IndustryPlumbing
Inlet to Outlet Length14
Material StandardASTM A124-C63200, ASTM A126 Class B, ASTM A307 Class B
MediaGas, Oil, Steam, Water
Model435
Nominal Size6
Pressure Class125
Pressure Rating125
Seal MaterialBronze/Fiber/Graphite
Stem MaterialBronze
Temperature Rating14 to 353
Top to Inlet Center8.54
Additional Information
ANSI B16.10|MSS-SP-71
Features & Benefits
- Iron body bronze mounted Bolted cover Steel bolt, nut, washer, disc nut and stud bolt, cast iron bonnet, brass side plug, cast bronze hinge pin, ductile iron hinge
