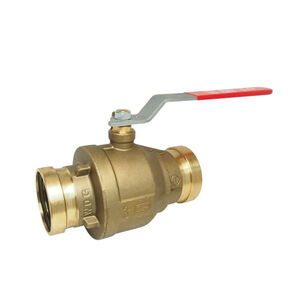

RWV® ECO-VALVE 5020ABX Series 5020ABX-2-1/2 Ball Valve, 2-1/2 in, Press, Brass, 200 psi
RWV® ECO-VALVE 5020ABX Series 5020ABX-2-1/2 Ball Valve, 2-1/2 in, Press, Brass, 200 psi
RWV® ECO-VALVE Ball Valve, 5020ABX Series, 2-1/2 in Nominal, Press Connection, Full Port, XLC, 200 psi, Gas, Oil, Water Media, 2.55 in Orifice, 8.46 in Inlet to Outlet Length, 4.69 in Top to Inlet Center, 2.66 in Opening, Lever Handle Operator, 450 Cv Flow Coefficient (Cv), Material Standard: ASTM B927 C27453, C28500, ASTM B124 C37700, ASTM A36, ASTM A295 52100, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, Brass/PTFE Packing, Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free, 15 to 160 deg F, 8.46 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$861.15 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
ApplicationFor HVAC systems, oil, compressed air or gas distribution
Ball MaterialBrass
Body MaterialBrass
ConfigurationXLC
Connection TypePress
Dimensions8.46 " L
Flow Coefficient (Cv)450
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length8.46
Lead-FreeYes
Material StandardASTM B927 C27453, C28500, ASTM B124 C37700, ASTM A36, ASTM A295 52100
MediaGas, Oil, Water
Nominal Size2-1/2
Opening Size2.66
Operator TypeLever Handle
Orifice Size2.55
Packing MaterialBrass/PTFE
Port TypeFull
Pressure Rating200
Seat MaterialPTFE
Series5020ABX Series
Softgoods MaterialEPDM/PTFE
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center4.69
Trim MaterialBrass/PTFE
Additional Information
California AB1953|BAA Compliant|cTLus Listed|MSS-SP-110|NSF/ANSI 61, 372
Features & Benefits
- Chrome-plated ball Virgin PTFE seats Adjustable packing nut Blowout-proof stem
Marketing Information
Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.
RWV® ECO-VALVE 5020ABX Series 5020ABX-2-1/2 Ball Valve, 2-1/2 in, Press, Brass, 200 psi
BrandRWV®
MFG #5020ABX 2-1/2
Keller #778941
My Part ##
Last Ordered#
$861.15 / ea
