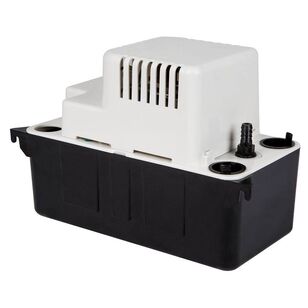

Little GIANT® VCMA-15 Series LG-VCMA-15UL Condensate Pump, 115 V, 1 A, 1/5 hp, 65 gph, 1 ft Max Head, ABS
Little GIANT® VCMA-15 Series LG-VCMA-15UL Condensate Pump, 115 V, 1 A, 1/5 hp, 65 gph, 1 ft Max Head, ABS
Little GIANT® Condensate Pump, Series: VCMA-15 Series, 115 V, 1 A, 60 W, 1/5 hp HP Rating, 60 Hz, 65 gph, 3/8 in Discharge, 1 ft Maximum Head, Polypropylene Impeller, 0.5 gal Tank, 15 ft Shut-Off Head, 1-1/8 in Inlet, 3 Inlets, 6 ft, 6.5 psi, Wall Mount, 140 deg F, 7 in H x 11 in L, ABS
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$118.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLittle GIANT®
Amperage Rating1
Cord Size6
Dimensions7 " H x 11 " L
Discharge Size3/8
Flow Rate65
Frequency Rating60
HP Rating1/5
Impeller MaterialPolypropylene
IndustryPlumbing
Inlet Size1-1/8
MaterialABS
Maximum Head1
Mounting TypeWall
Number of Inlets3
Power Rating60
Pressure Rating6.5
SeriesVCMA-15 Series
Shut-Off Head15
Tank Size0.5
Temperature Rating140
Voltage Rating115
Additional Information
cCSAus Certified
Features & Benefits
- Vertical centrifugal pump design Stainless steel motor shaft Automatic start and stop operation Some model equipped with float (solid polymer) activated switch for automatic high-levels water detection (overflow detection switch) Overflow detection switch dual function no and NC operation (set to no from factory for equipment shut down connection) Overflow detection switch includes two 5 in switch lead wires Three 1-1/8 in Dia inlet openings (two fitted with removable cap plug) Thermally protected, fan cooled motor Built-in wall-mount tabs on tank Removable pump float locking tab for safety during transportation (remove at time of installation) 6 ft three conductor cables with grounded three prong plug Some model include 20 ft x 3/8 in ID vinyl discharge tubing
Little GIANT® VCMA-15 Series LG-VCMA-15UL Condensate Pump, 115 V, 1 A, 1/5 hp, 65 gph, 1 ft Max Head, ABS
BrandLittle GIANT®
MFG #554401
