ASTM A536 Grade 65-45-12|UL/cUL Listed|FM Approved

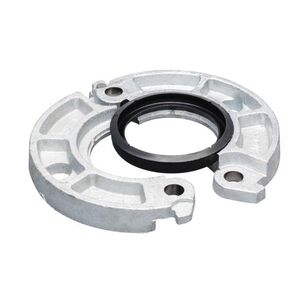

Style 744 FireLock™ flange adapter is designed for directly incorporating flanged components with ANSI CL 125 or CL 150 bolt hole patterns into a grooved pipe system. Sizes 2 to 8 in (50 to 200 mm) are hinged for easy handling with integral end tabs which facilitate assembly. The design incorporates small teeth inside the key shoulder I.D. To prevent rotation. Because of the outside flange dimension, FireLock™ flange adapters should not be used on FireLock™ fittings. When wafer or lug-type valves are used adjoining a Victaulic® fitting, check disc dimensions to assure proper clearance. FireLock™ flange adapters should not be used as anchor points for tie-rods across non-restrained joints. Mating rubber faced flanges, valves and more require the use of a FireLock™ flange washer. FireLock™ flange adapters with vic-plus gaskets do not require lubrication. The gasket must always be assembled with the color-coded lip on the pipe and the other lip facing the mating flange.
