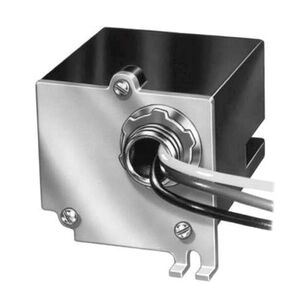

Honeywell R8225D1003/U Relay, 1NO DPST, 24 VAC Coil
Honeywell R8225D1003/U Relay, 1NO DPST, 24 VAC Coil
Honeywell Relay, 60 Hz, 24 VAC Coil, 1NO DPST, Double Quick-Connect, Lead Wire Terminal, 115 deg F, 2-11/16 in Height, 3-7/16 in Width, 2-1/2 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$275.22Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
Brandresideo
Coil Voltage24
Contact Configuration1NO DPST
Depth2-1/2
Frequency Rating60
Height2-11/16
Temperature Rating115
Terminal TypeDouble Quick-Connect, Lead Wire
Width3-7/16
Additional Information
CSA File LR95329-1|Guide NLDX|UL File E14480|Volume 1 Section 3
Features & Benefits
- Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation Untaped coil assures cooler operation Laminated magnet construction for high efficiency Base designed for easy replacement of competitive relays Contact rating - 8 A, 2 A auxiliary at 240 VAC; 14 A, 3 A auxiliary at 120 VAC full load; 48 A, 12 A auxiliary at 240 VAC; 84 A, 18 A auxiliary at 120 VAC Locked rotor; 8 A, 2 A auxiliary at 240 VAC; 16 A, 3 A at 120 VAC resistive
Honeywell R8225D1003/U Relay, 1NO DPST, 24 VAC Coil
Brandresideo
MFG #R8225D1003/U
Keller #783499
