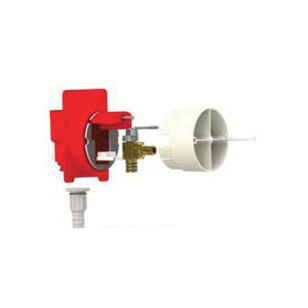

LSP OBFPS-114-RK-LL FIRE STOP ICE MAKER PULL STOP BOX ROUGH-IN KIT 1/2 UPONOR PEX LEAD FREE
LSP OBFPS-114-RK-LL FIRE STOP ICE MAKER PULL STOP BOX ROUGH-IN KIT 1/2 UPONOR PEX LEAD FREE
LSP™ FireStop™ Pull Stop Box™ Outlet Box Rough-In Kit, 1/2 in Connection, Uponor PEX Connection, Ball Valve, 3-1/2 in Box Width, 2 in Box Depth, 4-1/8 in Box Height, ABS Box, Brass Valve, Additional Information: 20 to 125 psi Pressure Rating, 40 to 160 deg F Temperature Rating, Lead-Free
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$51.58 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLSP™
Additional Information20 to 125 psi Pressure Rating, 40 to 160 deg F Temperature Rating, Lead-Free
Box Depth2
Box Height4-1/8
Box MaterialABS
Box Width3-1/2
Connection Size1/2
Connection TypeUponor PEX
IncludesBox, Valve and Protective Cover
IndustryPlumbing
Valve MaterialBrass
Valve TypeBall
Warranty5 Year Limited
Additional Information
NSF/ANSI 61-2018, 372-2016|ASME A112.18.1|CSA B125.1 4577|IAPMO Approved|UPC Certified
Features & Benefits
- Must use metal brackets during installation Patented design moves the angle stop for ice maker water supply into the wall Easy-to-install vertically, upside down and horizontally Eliminates the need for a copper stub out Unique push-pull handle opens and closes the valve Integrated, replaceable valve has a reliable triple O-ring design inlet seal 1 and 2 hr fire-rated Intumescent pad seals through wall penetration Ball valve design with PTFE seats A standard 75% reduction ice maker in surface box and area a 55% compared reduction to a in area compared to a mini ice maker box
Documents
Marketing Information
The FireStop™ Ice Maker Pull Stop Box™ is constructed of fire-resistant ABS with a factory-mounted intumescent pad. The OBFPS Series are Warnock Hersey certified to ASTM E-814 and CAN/ULC S115 with 1 and 2 hr listings. Suitable for wood or metal studs and for all pipe-types.
LSP OBFPS-114-RK-LL FIRE STOP ICE MAKER PULL STOP BOX ROUGH-IN KIT 1/2 UPONOR PEX LEAD FREE
BrandLSP™
MFG #OBFPS-114-RK-LL
Keller #783624
