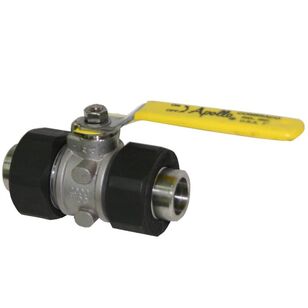

Apollo® 76-400 Series 76-406-01 Ball Valve, 1-1/4 in, Double Union x Socket Weld, Stainless Steel, 1500 psig
Apollo® 76-400 Series 76-406-01 Ball Valve, 1-1/4 in, Double Union x Socket Weld, Stainless Steel, 1500 psig
Apollo® Ball Valve, 76-400 Series, 1-1/4 in Nominal, Double Union x Socket Weld Connection, Standard Port, Standard, 1500 psig, Gas, Water Media, 1-1/4 in Orifice, 5.32 in Inlet to Outlet Length, 2.88 in Top to Inlet Center, Lever Handle Operator, 125 Cv Flow Coefficient (Cv), Material Standard: ASTM A276, ASTM A351 Grade CF8M, Stainless Steel Body, RPTFE Seat, 316 Stainless Steel Stem, RPTFE Seal, MPTFE Packing, Stainless Steel Handle, 316 Stainless Steel Ball, Lead-Free, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,411.93 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Ball Material316 Stainless Steel
Body MaterialStainless Steel
ConfigurationStandard
Connection TypeDouble Union x Socket Weld
Domestic/ImportDomestic
Flow Coefficient (Cv)125
Handle MaterialStainless Steel
Inlet to Outlet Length5.32
Material StandardASTM A276, ASTM A351 Grade CF8M
MediaGas, Water
Nominal Size1-1/4
Operator TypeLever Handle
Orifice Size1-1/4
Packing MaterialMPTFE
Port TypeStandard
Pressure Rating1500
Seal MaterialRPTFE
Seat MaterialRPTFE
Series76-400 Series
Stem Material316 Stainless Steel
Top to Inlet Center2.88
Additional Information
MSS SP-110 Compliant|CSA B51|UPC Listed
Features & Benefits
- Heavy-duty quarter-turn handles Reinforced seats and seals Blowout-proof stem design Adjustable packing gland Standard configuration
Documents
Marketing Information
The Apollo Valves 76-400 Series is a double union end, socket weld, stainless steel ball valve.MSS SP-110 ComplaintHeavy Duty Quarter Turn HandlesReinforced Seats and SealsBlowout-Proof Stem DesignAdjustable Packing Gland
Apollo® 76-400 Series 76-406-01 Ball Valve, 1-1/4 in, Double Union x Socket Weld, Stainless Steel, 1500 psig
BrandApollo®
MFG #7640601
Keller #783828
My Part ##
Last Ordered#
$1,411.93 / ea
