ASTM B584, C89833 Material Standard, 1 in Opening, EPDM Seal, Brass Ball, 4.21 in L, Water Media

• PTFE-coated brass ball
• Valve rated for 300 PSIG water pressure, end connections not to exceed rated pipe pressures
• Blowout-proof EPDM port seals
• End piece joint sealed with an EPDM O-ring and thread locker

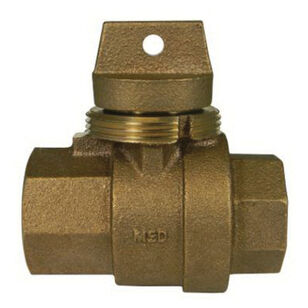

A.Y. McDonald Mfg. Co ball valve curb stops maintain their low turning torques and bubble-tight 300 psig water pressure rating due to the PTFE-coated brass ball that is supported by two blow-out-proof EPDM seals. The end piece joint is sealed with an EPDM O-ring and thread locker. A.Y. McDonald ball valve curb stops offer positive shut-off from either direction and are available with a wide variety of end connections or Minneapolis Curb Box threads. A brass 2 in square operating head that is easily pinned to existing curb stops is available separately.
