ASME A112.18.1|ASSE 1010|ASTM Specified|CSA B125.1|IAPMO Listed|LEED Green Building Code|NSF/ANSI 61/372|SBCCI 9636C|UPC Certified

• Quadtro® residential and commercial washing machine outlet box 2 in. drain opening fits PVC or ABS Sch. 40 DWV pipe Easy-to-remove, tool-free 1/4-turn knockout Snap-on faceplate frame accommodates up to 1 in. drywall Box made of high impact polystyrene stands up to the roughest job site abuse Connects to PEX supply line with F1807 connection 4 support brackets included for easy top or bottom valve mounting Two proprietary lock and load 1/4-turn valves enable left, right or center positioning of the drain pipe Four openings accommodate: A hot water PEX-compatible valve, a cold water PEX-compatible valve, PVC or ABS Sch. 40 drain pipe for connection to your DWV system, and the option for top-down supply line installation Box Dimensions: 9.43 in. W x 9.61 in. H x 3.73 in. D; Box Opening Dimensions: 8-3/4 in. W x 7.26 in. H Faceplate Dimensions: 11.73 in. W x 10.19 in. H Accommodates 2 hammer arrestors, sold separately, to reduce noise and protect pipes

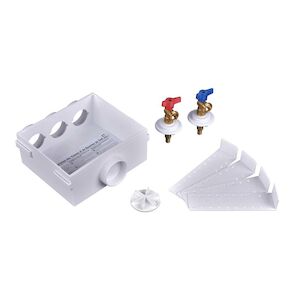

The Oatey® Quadtro® Washing Machine Outlet Box is made for commercial or residential applications where supply valves and waste drains are recessed into the wall. The proprietary lock and load valves enable left, right or center positioning of the drain pipe. This easy-to-install box includes all necessary support brackets to mount the water supply valves from the top or bottom. Oatey products have earned the trust of plumbing professionals for over 100 years.
