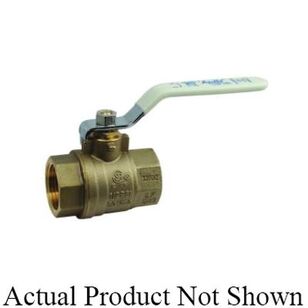

Apollo® 94ALF-100 Series 94ALF-102-01A Ball Valve, 3/8 in, NPT, Brass, 600 psig
Apollo® 94ALF-100 Series 94ALF-102-01A Ball Valve, 3/8 in, NPT, Brass, 600 psig
Apollo® Ball Valve, 94ALF-100 Series, 3/8 in Nominal, NPT Connection, Full Port, 600 psig, Gas, Water Media, 0.39 in Orifice, 1.76 in Inlet to Outlet Length, 1.73 in Top to Inlet Center, Material Standard: ASTM C36000, ASTM C37700, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, PTFE Packing, Steel Handle, Brass Ball, EPDM Softgoods, Lead-Free, 0 to 400 deg F, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$61.10 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Ball MaterialBrass
Body MaterialBrass
Connection TypeNPT
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length1.76
Lead-FreeYes
Material StandardASTM C36000, ASTM C37700
MediaGas, Water
Nominal Size3/8
Orifice Size0.39
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialPTFE
Seat MaterialPTFE
Series94ALF-100 Series
Softgoods MaterialEPDM
Stem MaterialBrass
Temperature Rating0 to 400
Top to Inlet Center1.73
Additional Information
MSS SP-110 Compliant|IAPMO/ANSI Z1157|NSF/ANSI/CAN 61|NSF/ANSI/CAN 372|RoHS 2015/863/EU|REACH 1907/2006|FM 1140|ANSI Z21.15|ASME B16.44|ASME B16.33|UL 125|UPC Listed|API 608|MSSP-25/72
Features & Benefits
- EZ-Solder™ lead-free materials Distinctive white lead-free handle grip Blowout-proof stem design 100% factory tested Adjustable stem packing nut Multiple agency approvals Stem seal O-ring
Documents
Marketing Information
The Apollo® International™ 94ALF-A lead-free forged brass ball valve combines reliable operation with maximum economy. Featuring multi-agency approvals, the 94ALF-A is ideal for gas, fuels, fire protection and general plumbing and HVAC applications including potable water. Valves are ANSI 3rd party lead-free certified.
Apollo® 94ALF-100 Series 94ALF-102-01A Ball Valve, 3/8 in, NPT, Brass, 600 psig
BrandApollo®
MFG #94ALF10201A
Keller #789631
My Part ##
Last Ordered#
$61.10 / ea
